Manually add a draw.io license to Confluence Server

You can manually install your draw.io license key for Confluence Server by editing the license key in your instance’s administration area.

  1. As an administrator, click on the gear icon and select General configuration.
  2. Under the draw.io add-on section in the left panel, click on License to go directly draw.io app in the Manage apps page.

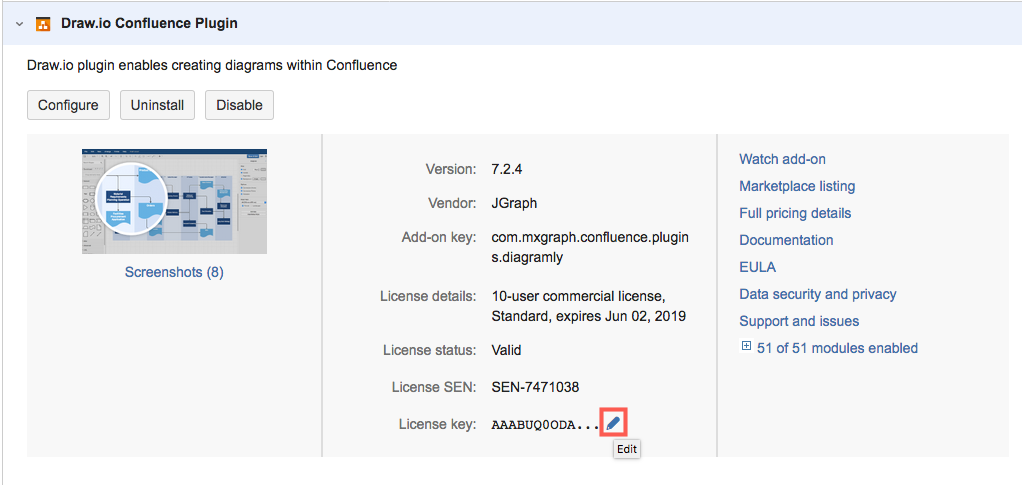

  3. Click on the Edit pencil next to the License key field.
    Edit the License key to manually add a draw.io license
  4. If the text field already contains some text, delete it. Paste your new license key into the text field, then click Update.
