Change how diagram links open on Confluence Server

You can change what happens when you click on a link in a diagram so that it opens in a new tab or the same tab in for Confluence Server.

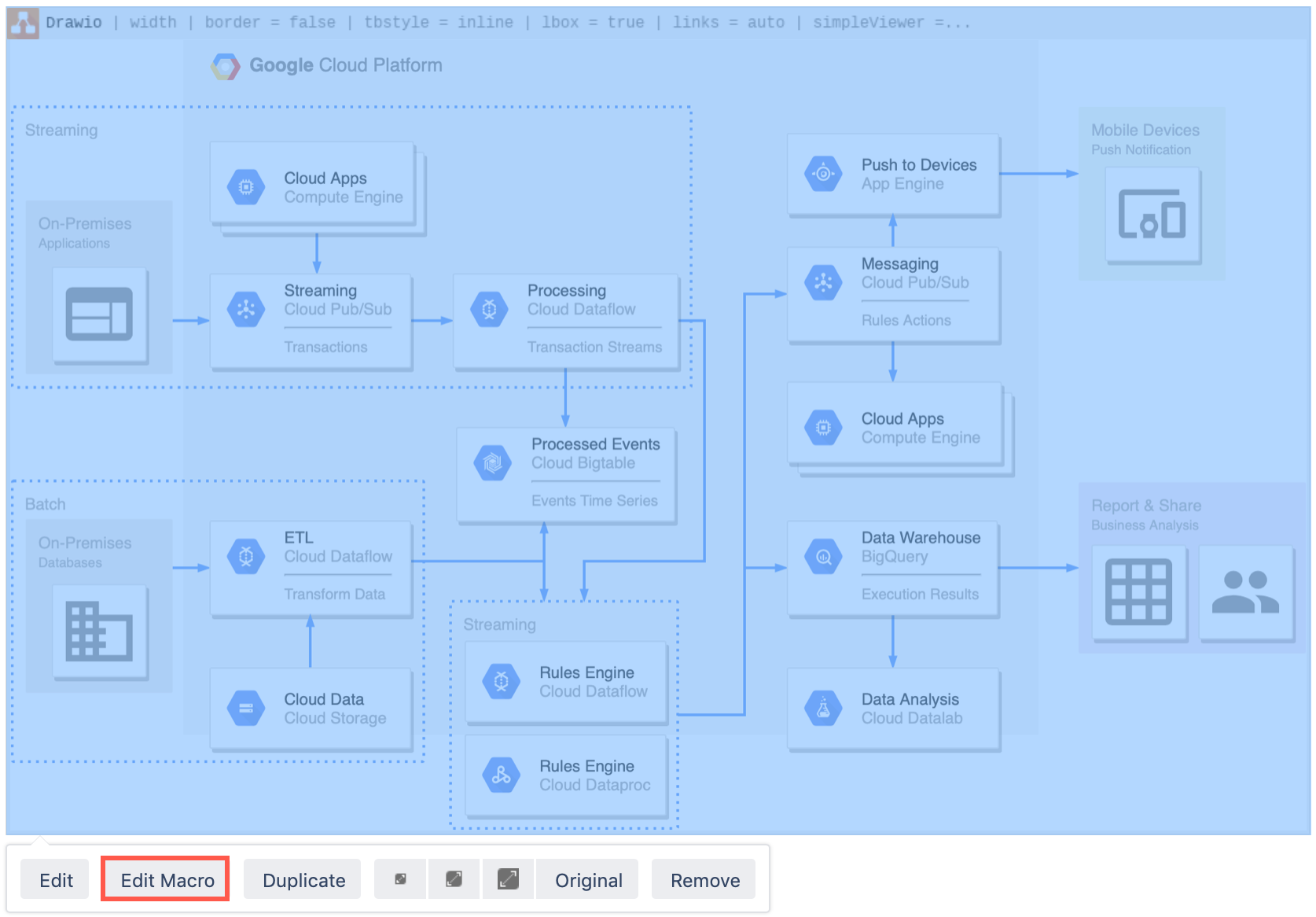

  1. Edit the page with the diagram in it, select the diagram macro (in edit mode), then click on Edit Macro.
    Edit the macro settings in Confluence Server

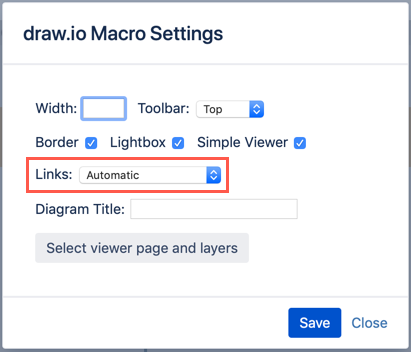

  2. In the Macro Settings dialog, select a different option from the Links drop down list, then click Save.
    Change the link behaviour of diagrams in the macro settings in Confluence Server
  3. Save and publish your page.

You can customise so that links in all of the diagrams in your instance open in another browser tab by default.

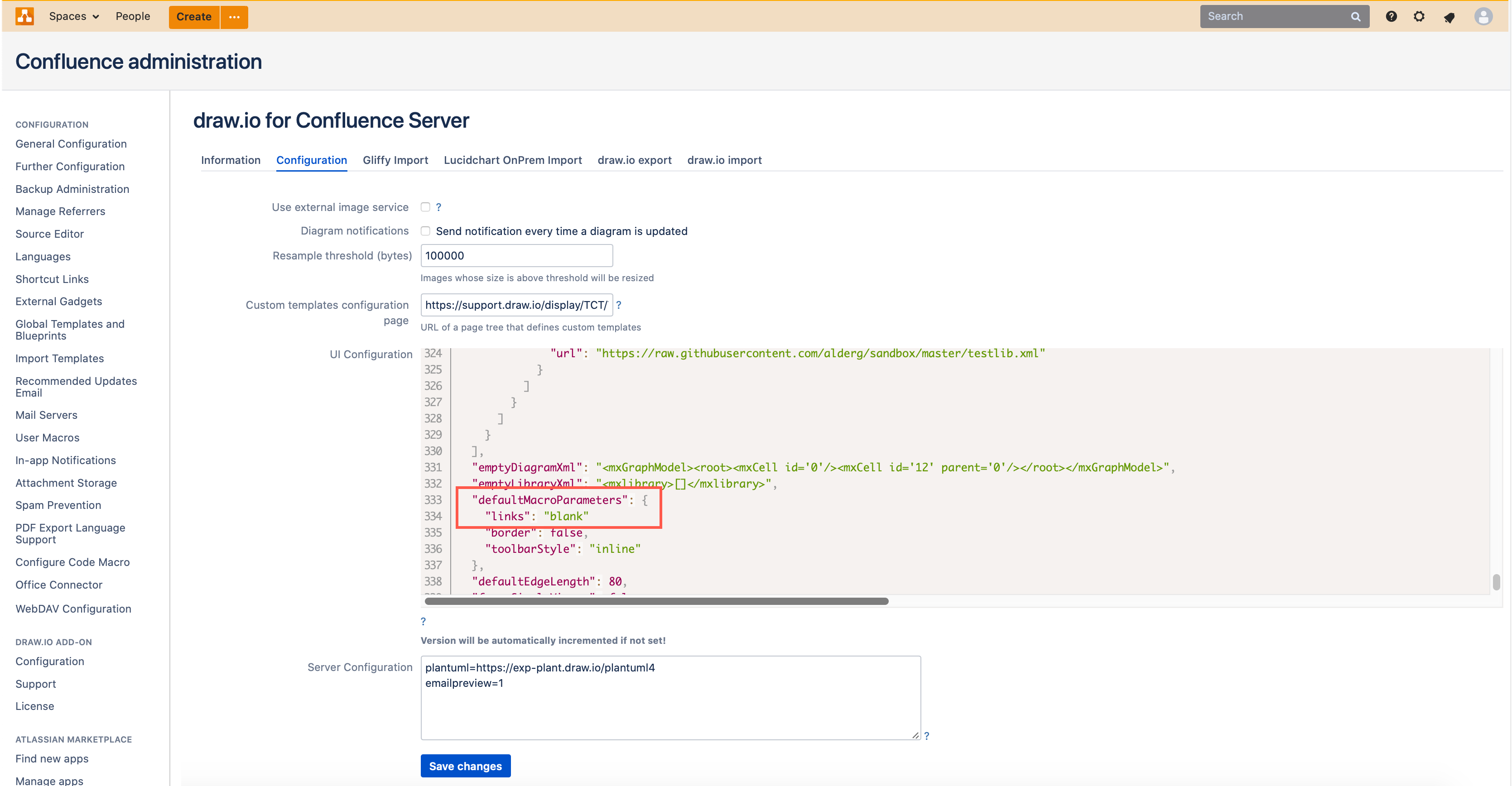

  1. As an administrator, click on the gear in the Confluence menu, then select General configuration to go to your instance’s administration area.
  2. In the left panel, under the add-on heading, select Configuration. Then select the Configuration tab.
  3. Add "defaultMacroParameters": { "links": "blank" } to the UI Configuration field, then click Save changes.
    Edit the configuration to change the default link behaviour globally

See how to customise for Confluence Server
