The default connector style is a solid line with an arrow head at the target end.

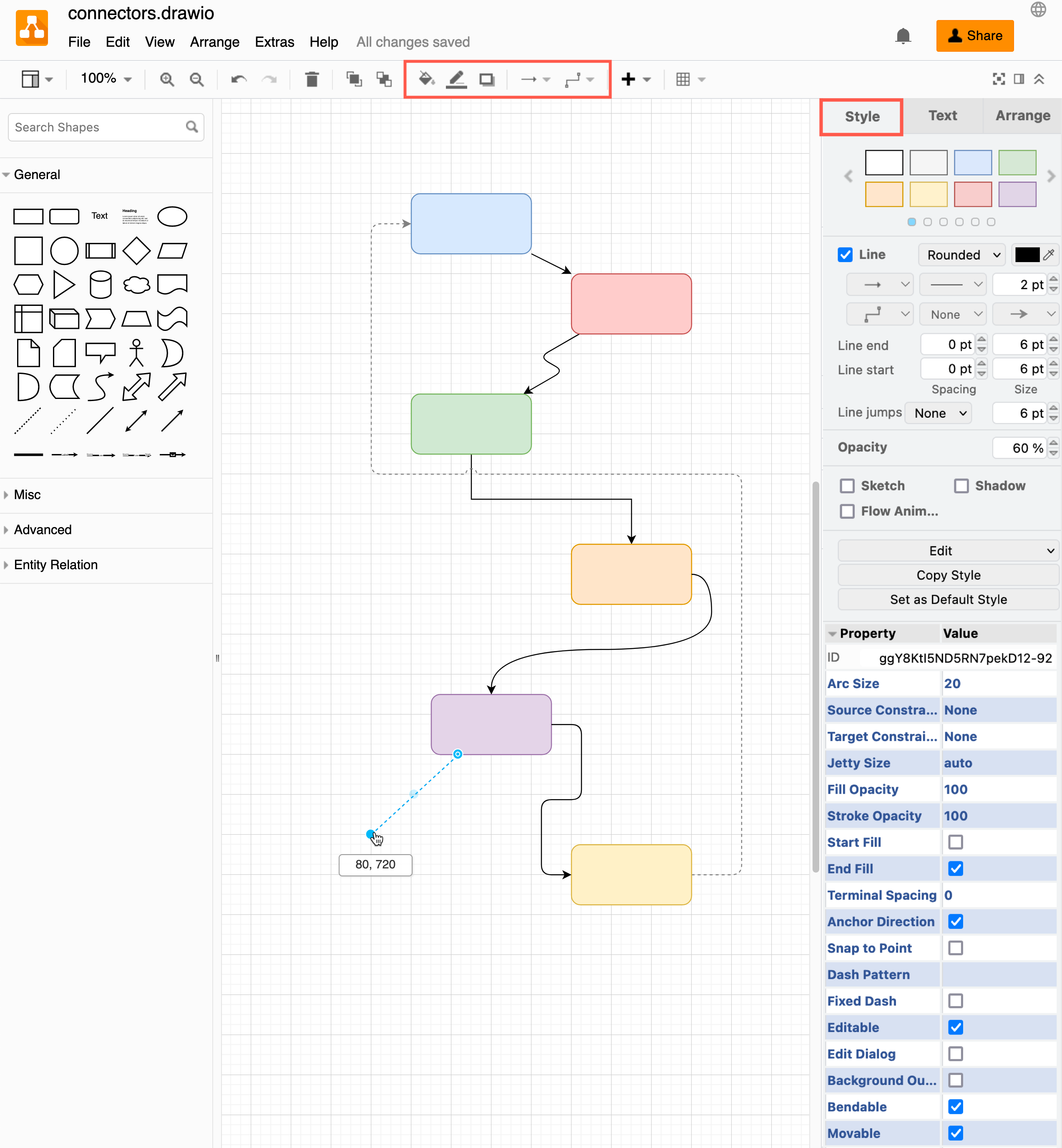

Select a connector, then use the options and advanced properties in the Style tab, or the connector style tools in the toolbar to change the connector’s appearance.
Tip: Copy and paste connector styles using the two buttons in the Style tab of the format panel - Copy Style and Paste Style.

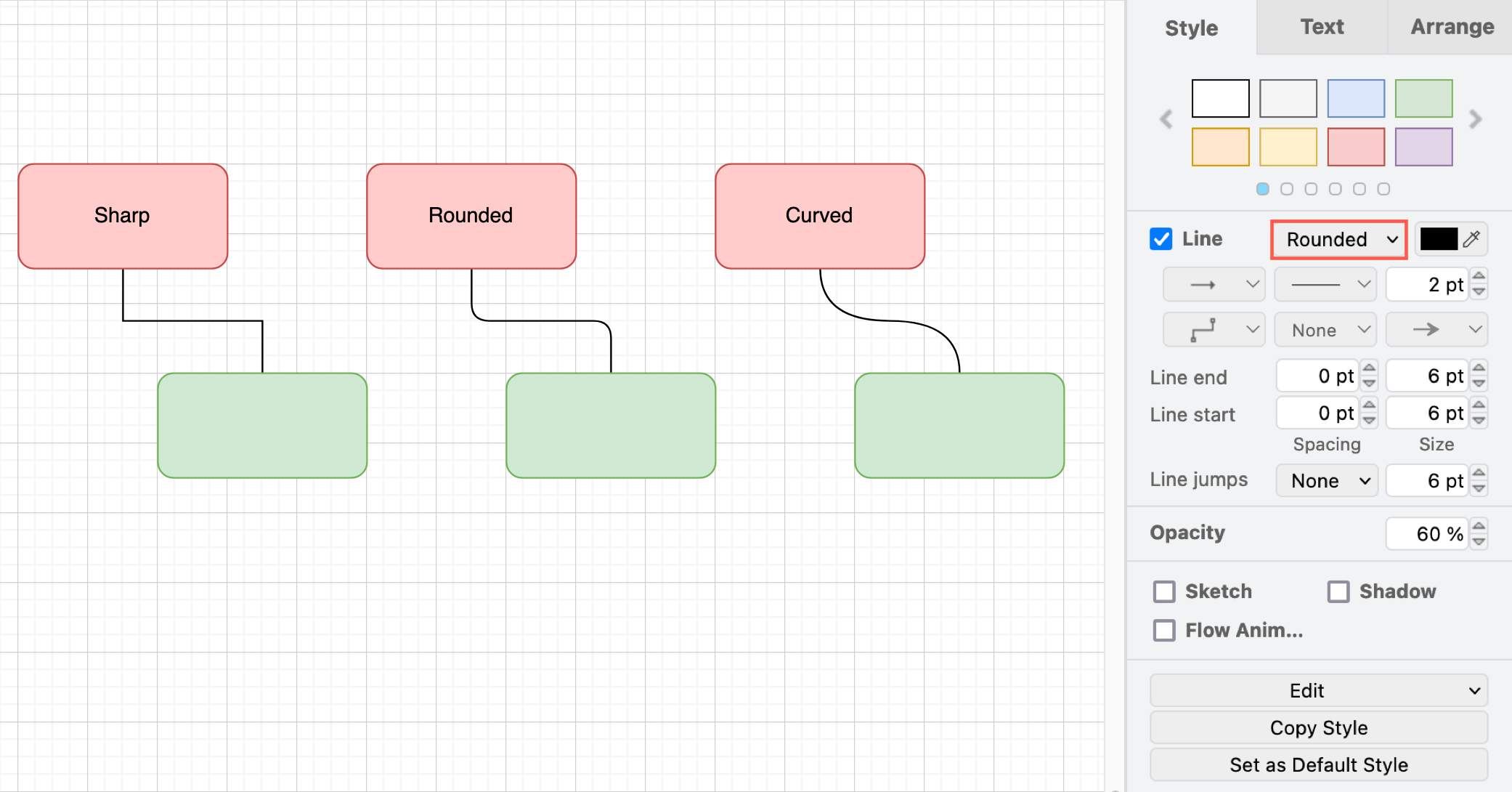

Line style - Styles the ‘corners’ where a connector changes direction. Choose between

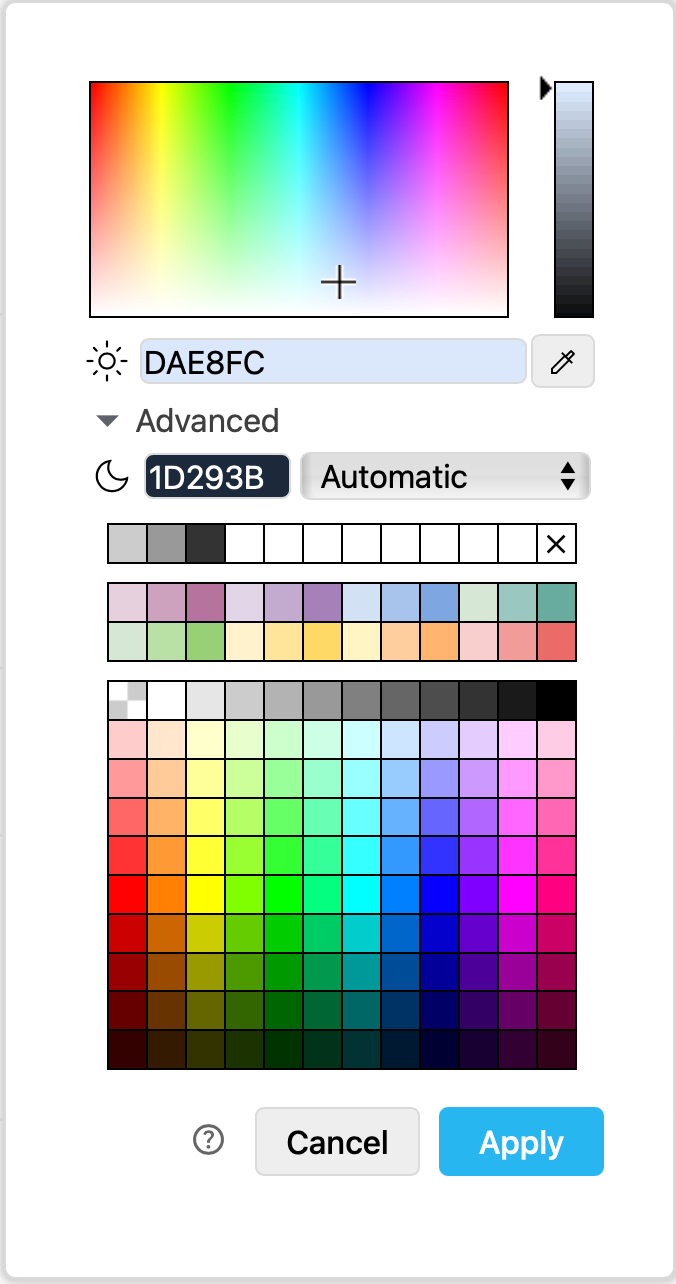

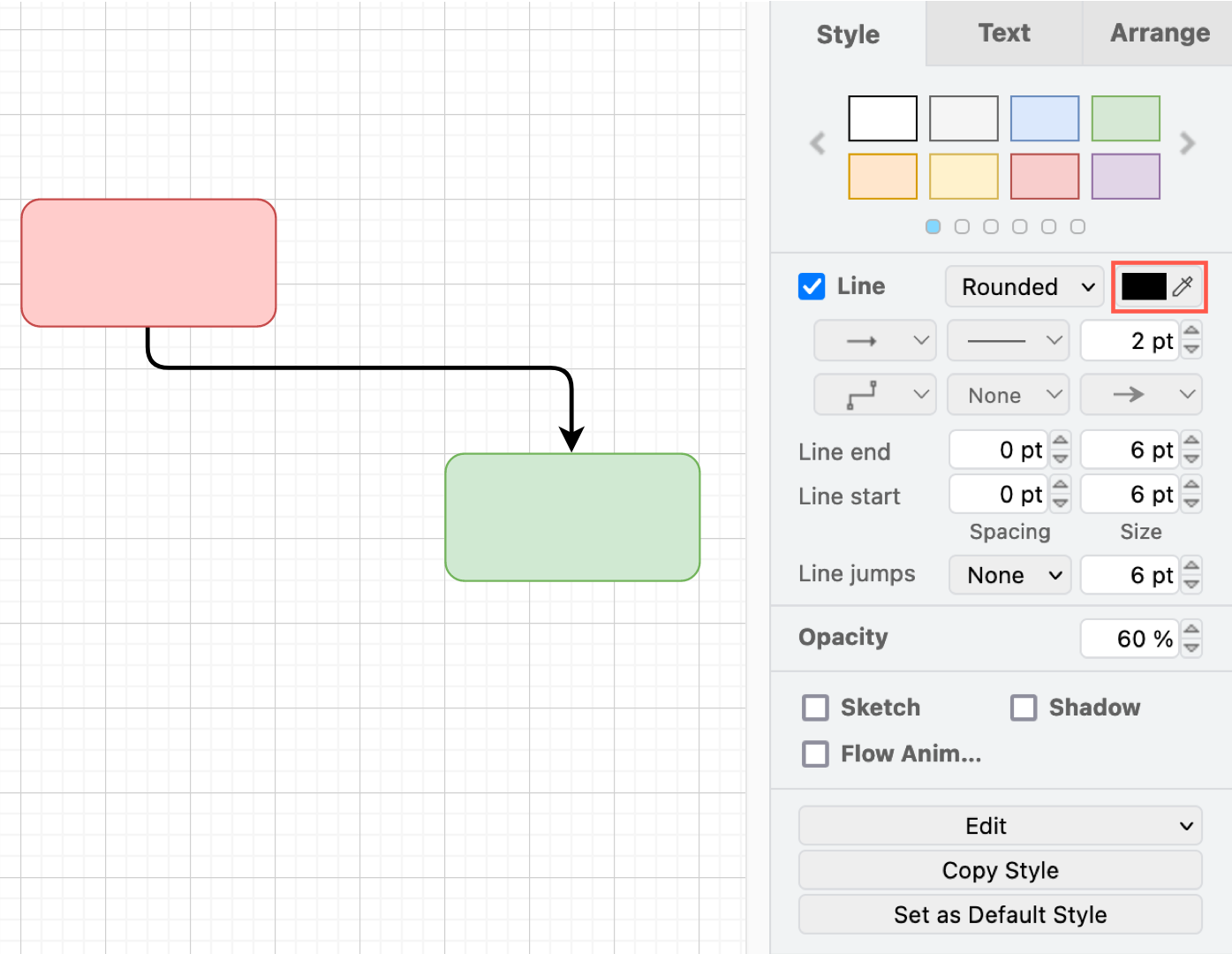

Colour - Change the colour of the connector and its ‘arrow’ heads with the colour palette. The default is black.

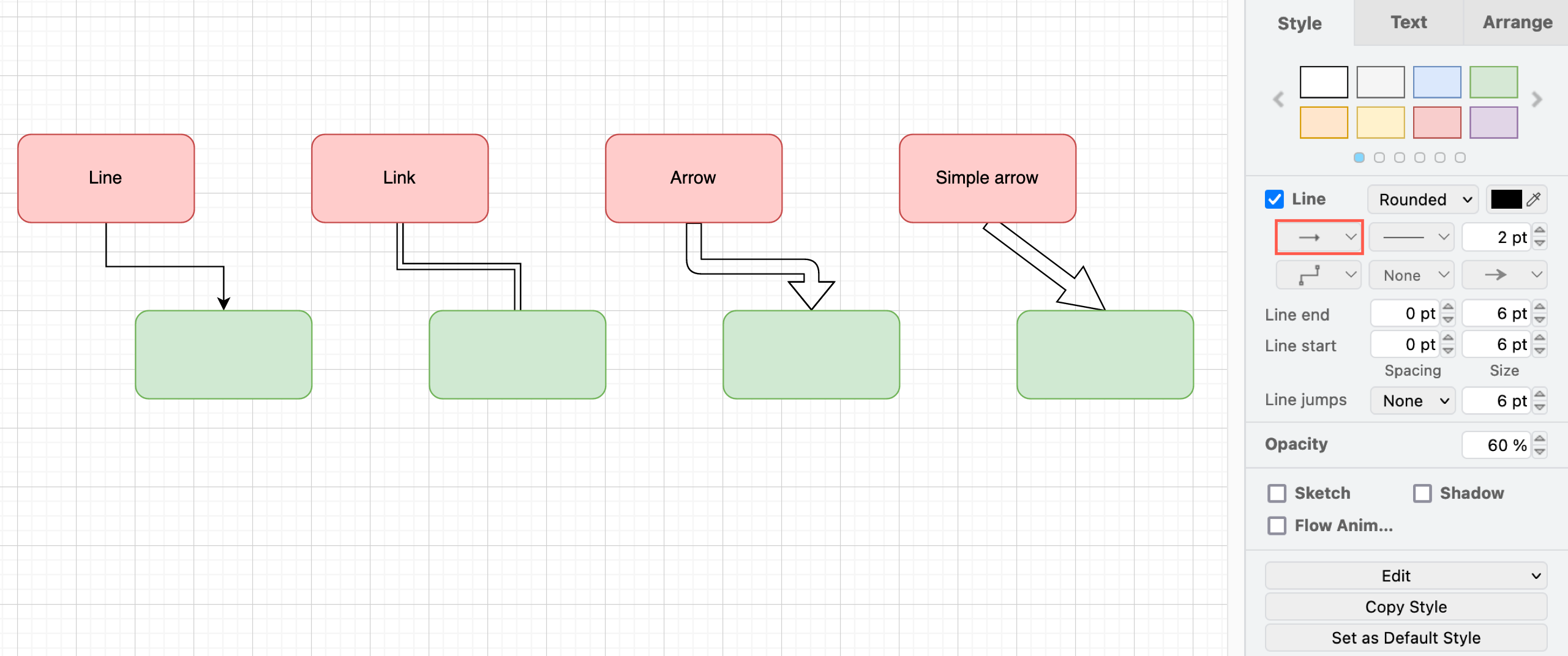

Connection - Turn the default single
line into a double line with no arrows (
link) or one of two customisable
arrow shapes. The
simple arrow is a straight connection between the two shapes with no waypoints.

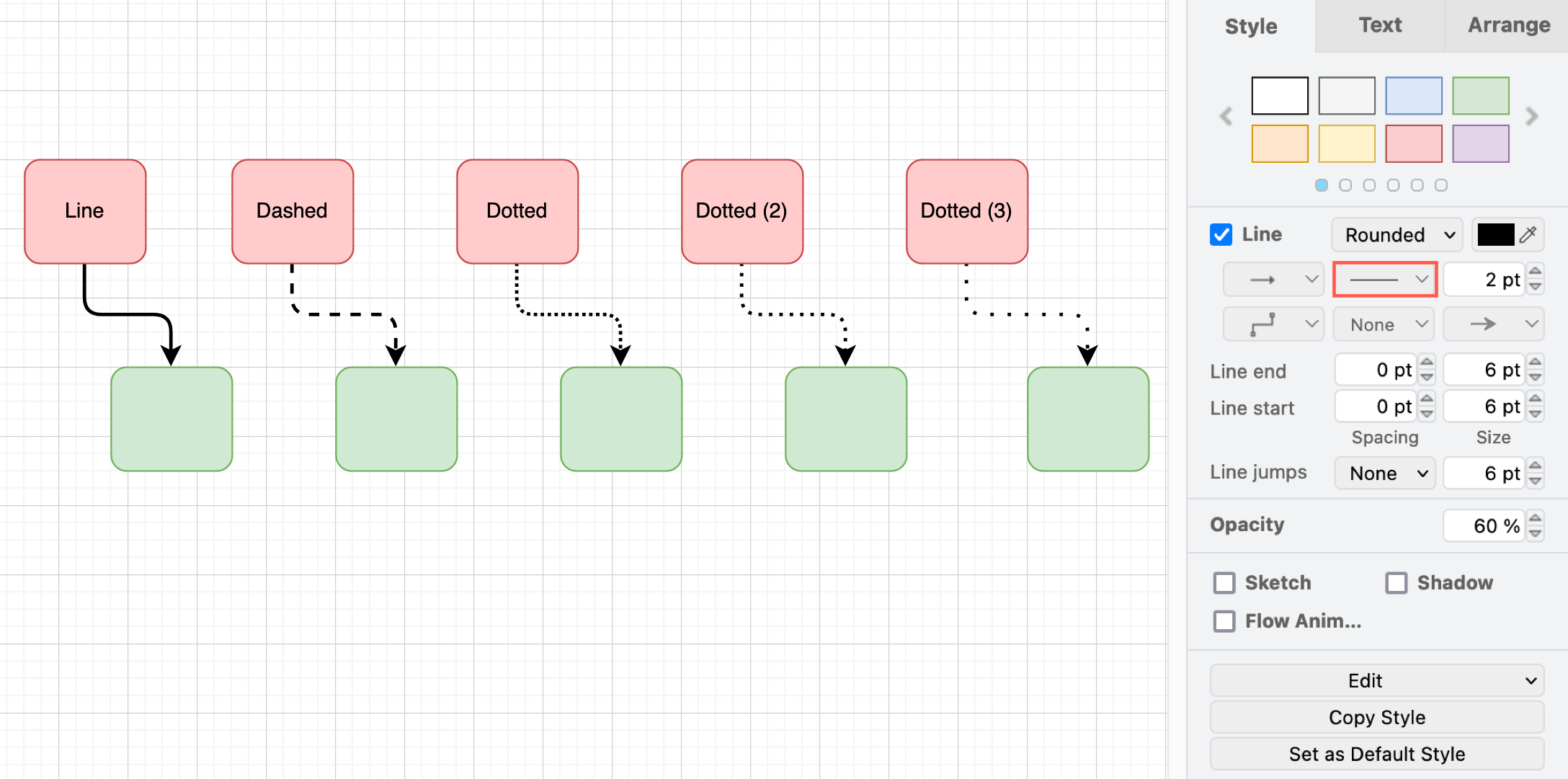

Pattern - Change the default solid
line’s pattern to a
dotted pattern of varying gap lengths.

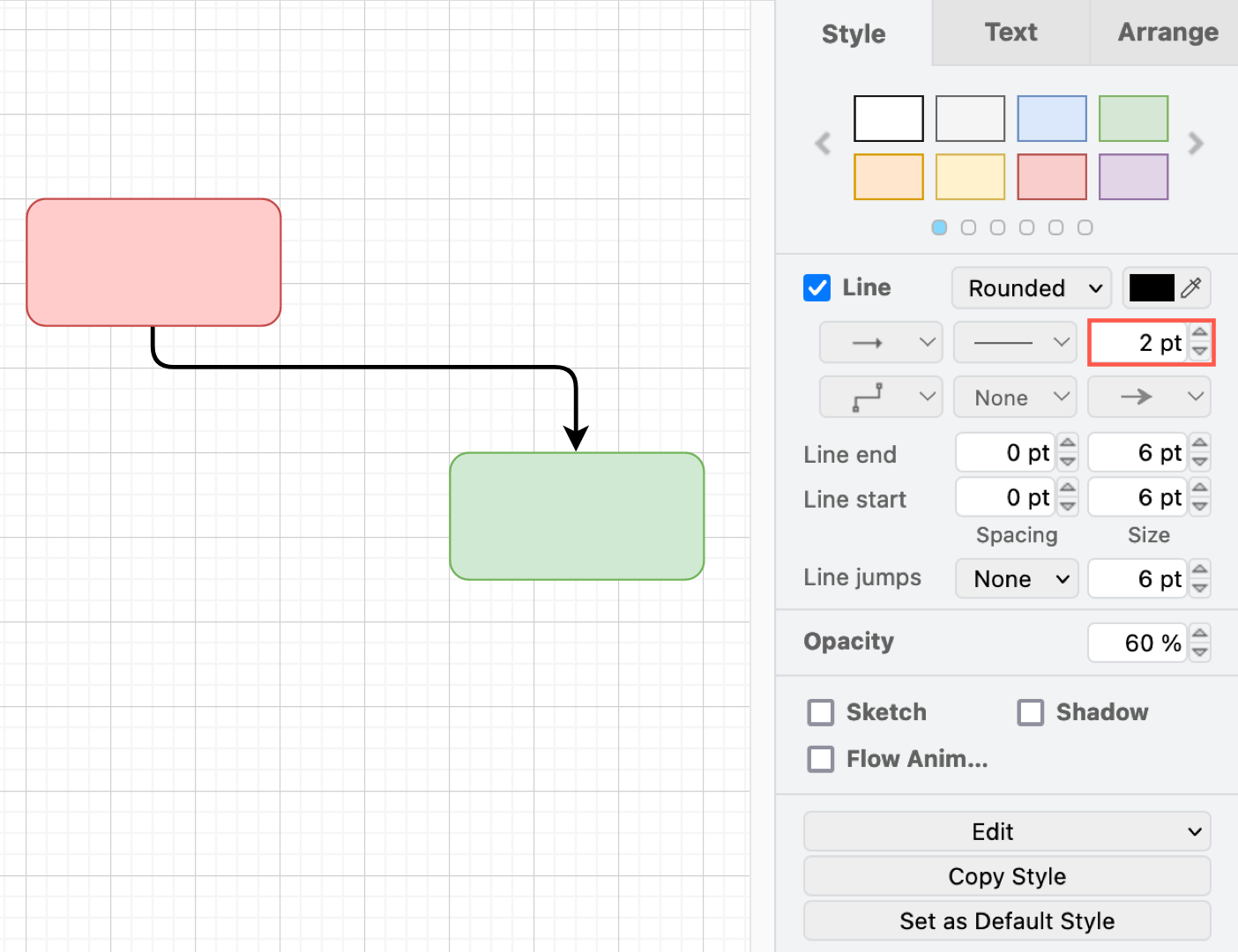

Thickness - Change the thickness of the connector line. The default is
Waypoints - Set predefined anchor points to change the path of the connector between two shapes. Choose between the default
straight (no waypoints),
orthogonal (with right-angled bends),
Work with waypoints on connectors

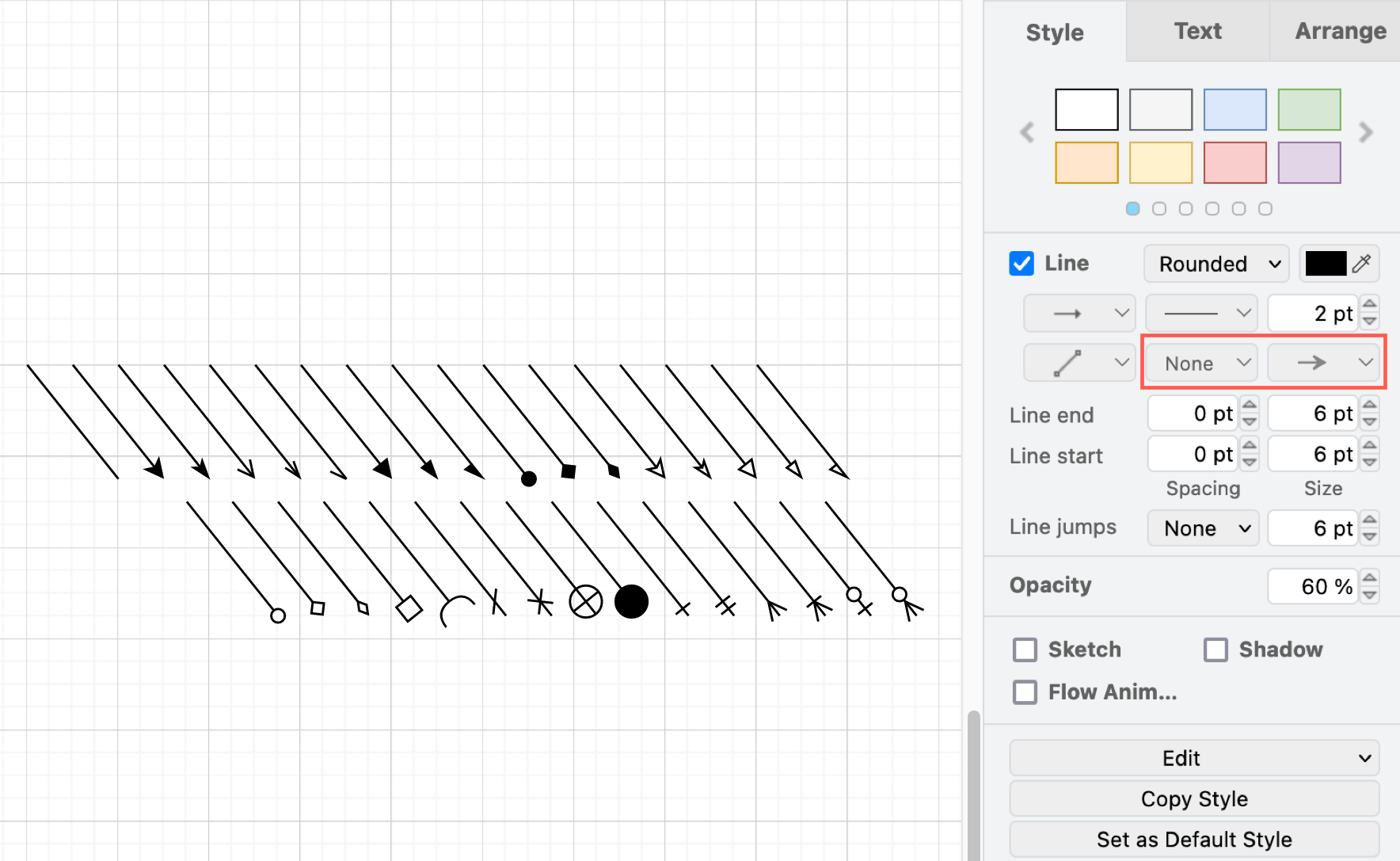

Source and target ‘arrow’ heads - Select a connector head from the very large drop down list. There are many different types of arrow heads, as well as symbols for UML and technical diagrams. Choose
None for just a plain line.

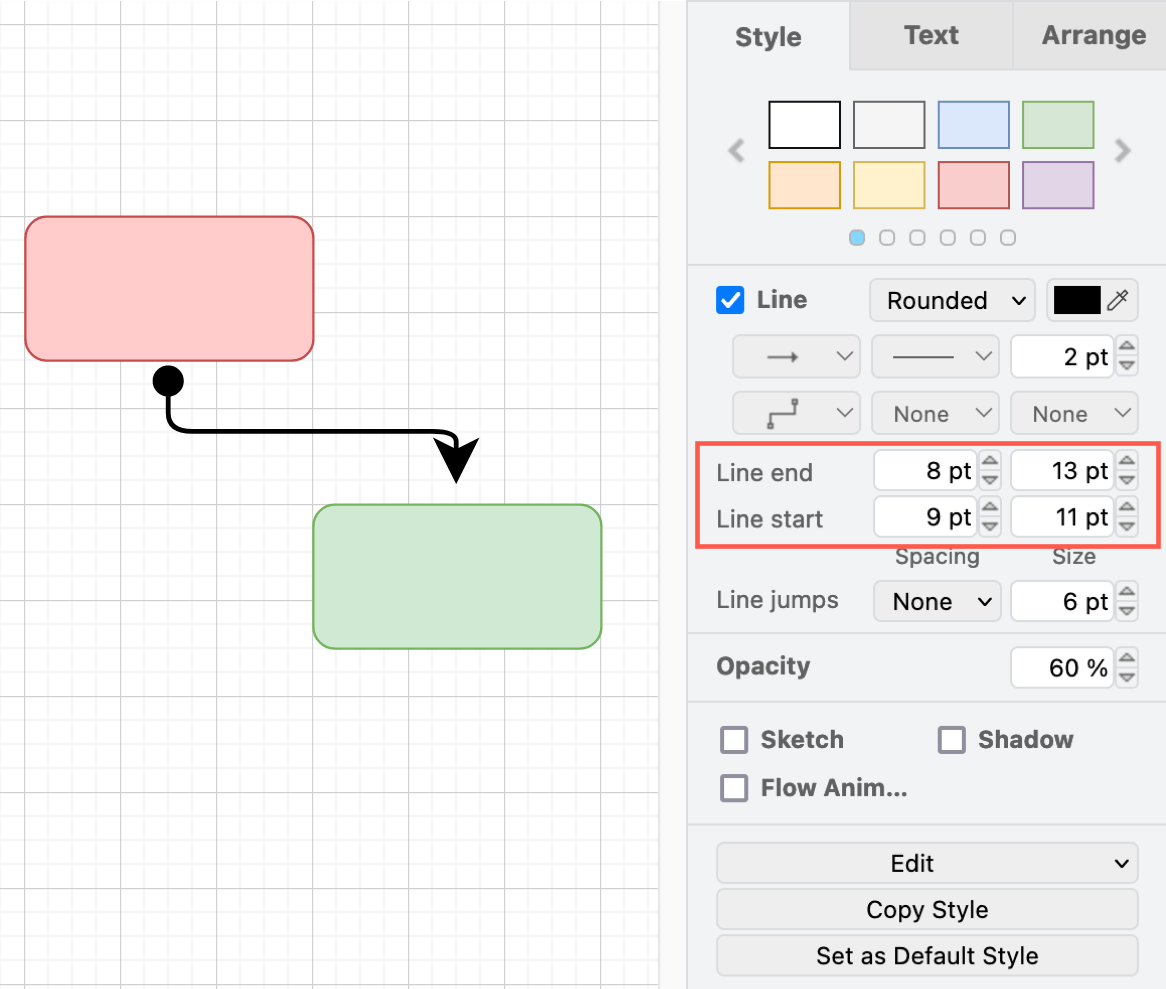

Line end and Line start - Set the size of the arrow head or symbol, and the space between it and the shape outline. Negative values for spacing will position the end of the connector inside the shape boundary.

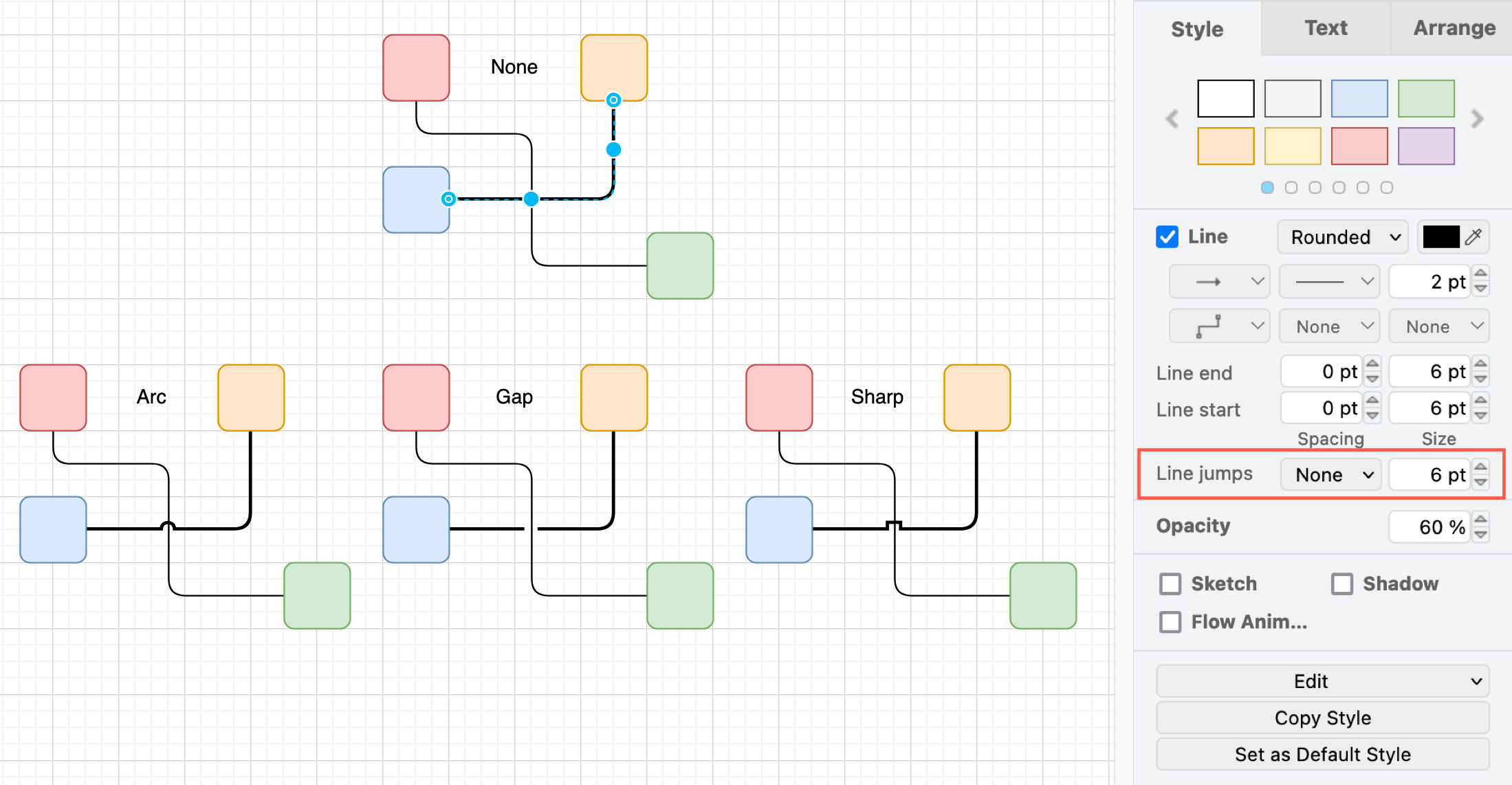

Line jumps - Choose how overlapping connectors should be displayed. Choose between the default
overlapped (none), with an
gap or a

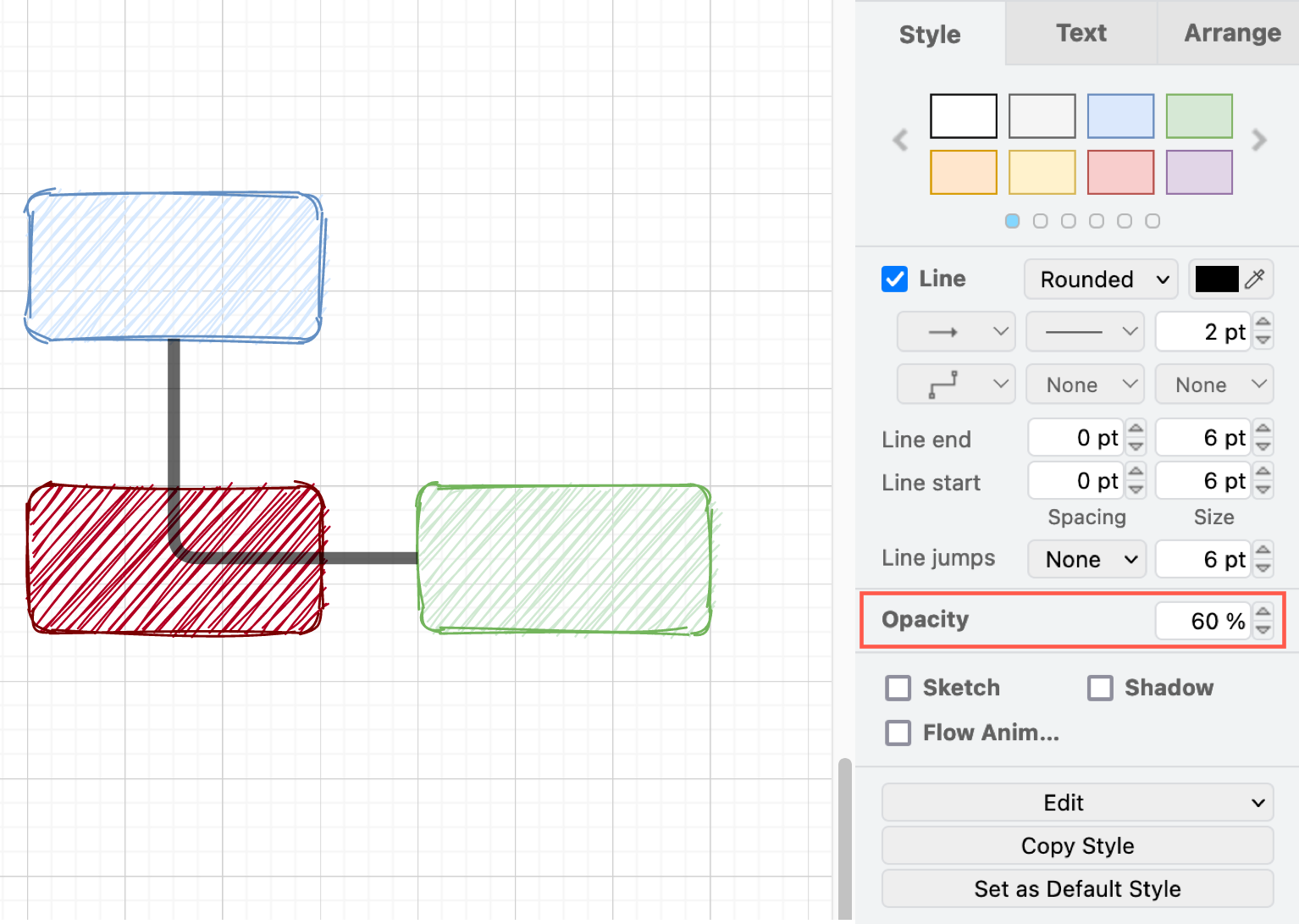

Opacity - Change the
Opacity value to allow shapes underneath the selected connector show through.

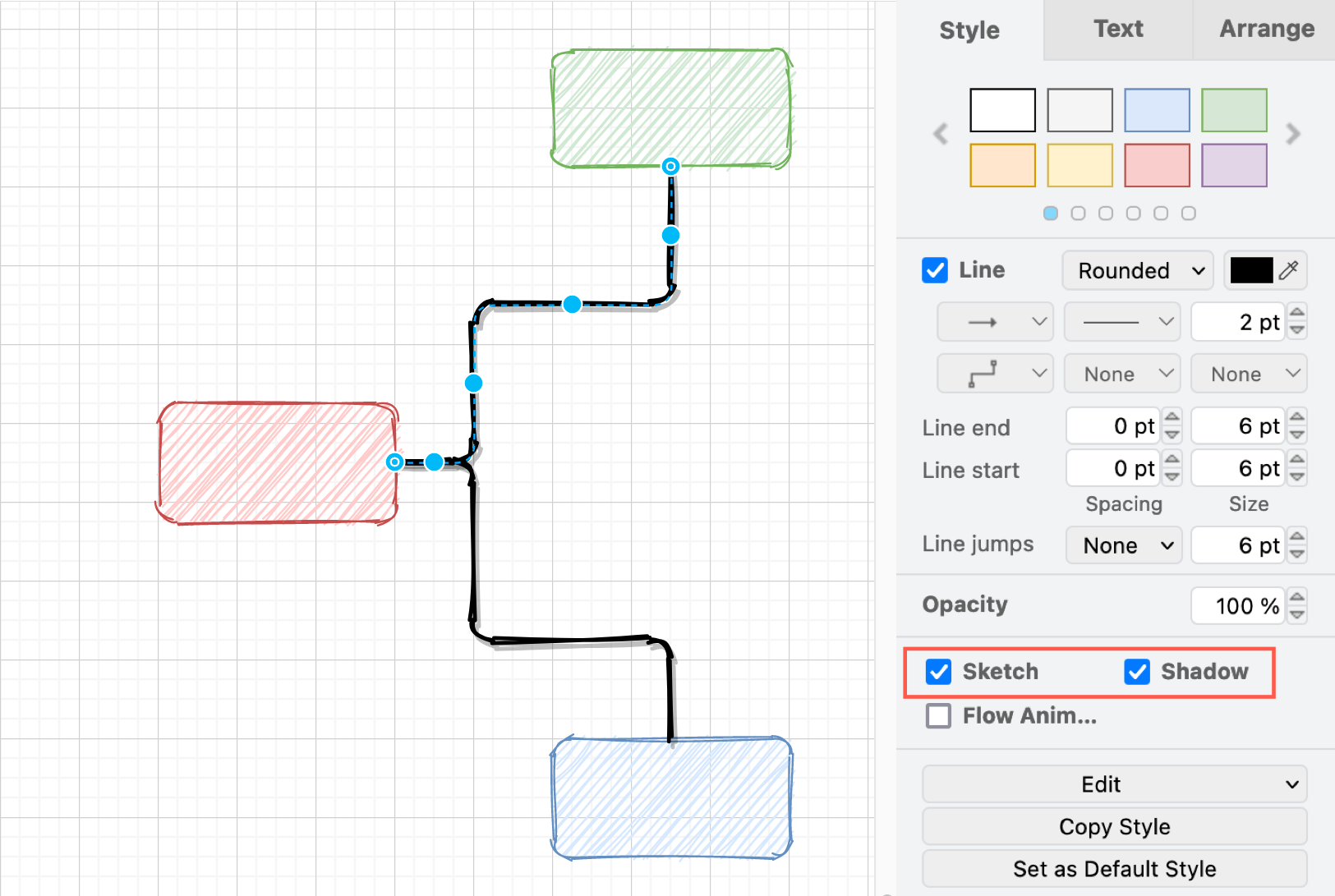

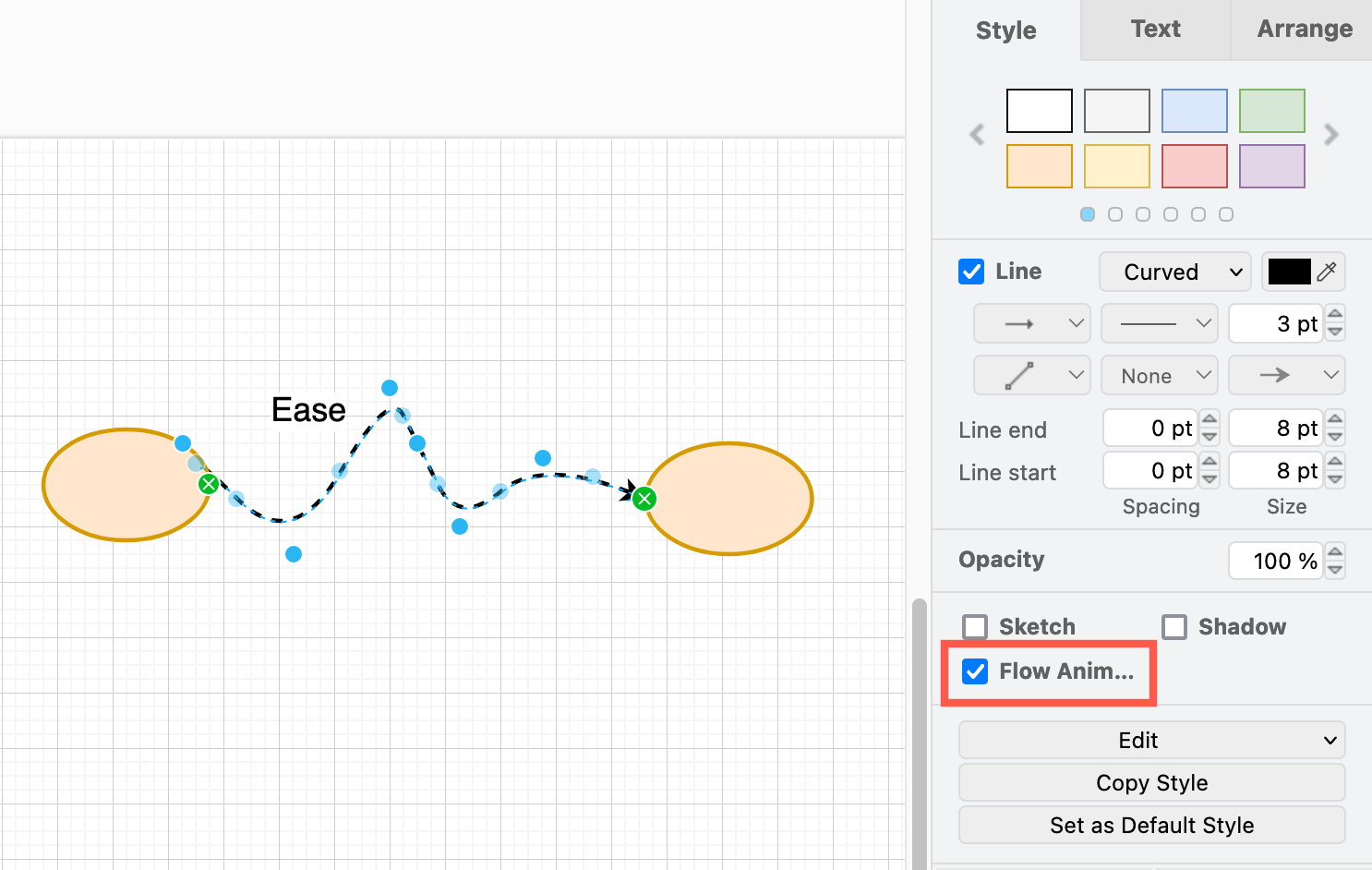

Shadow and Sketch - Add a
Shadow to your connector, or make your connector look roughly hand-drawn with

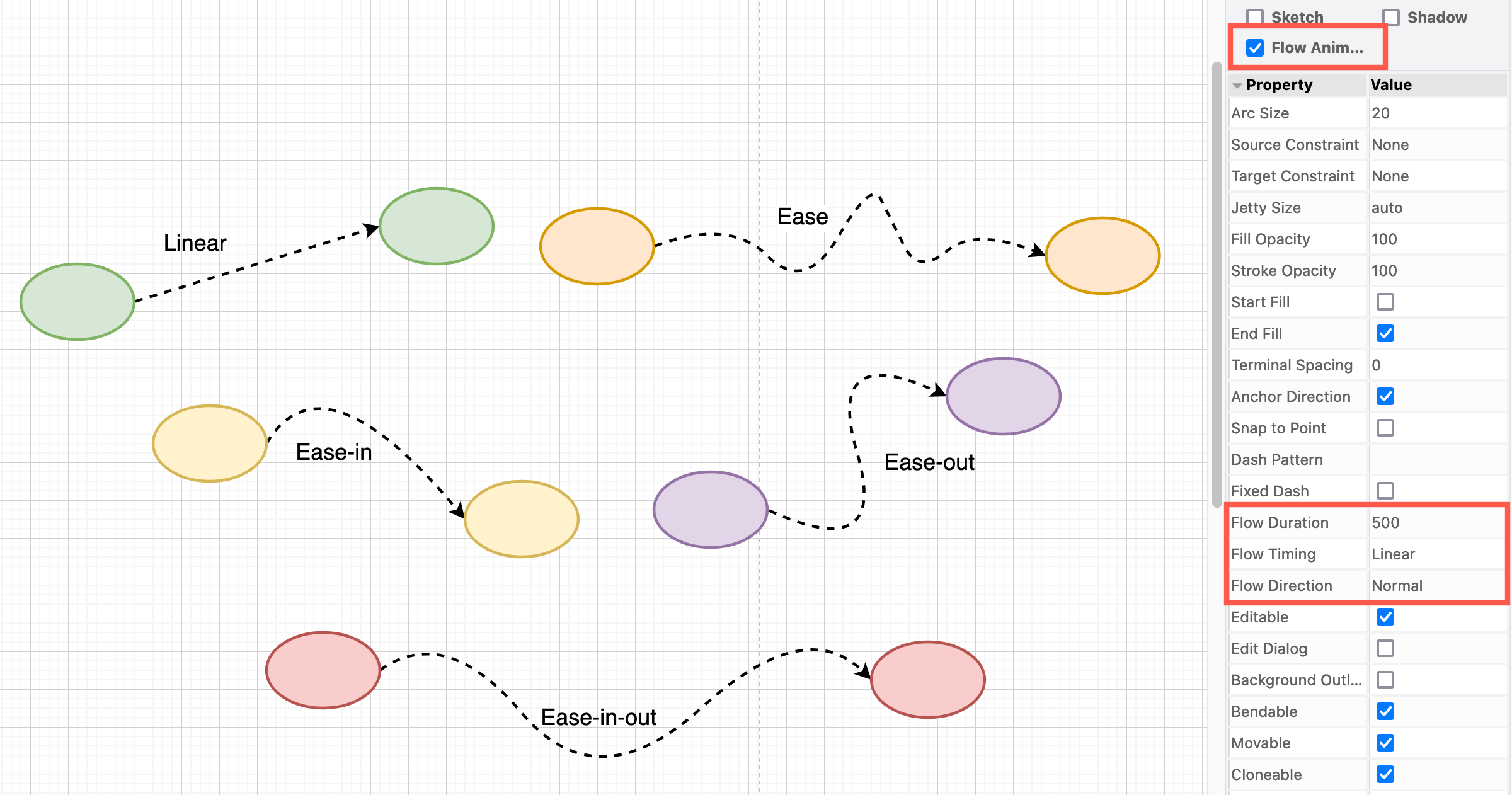

Additional connector properties

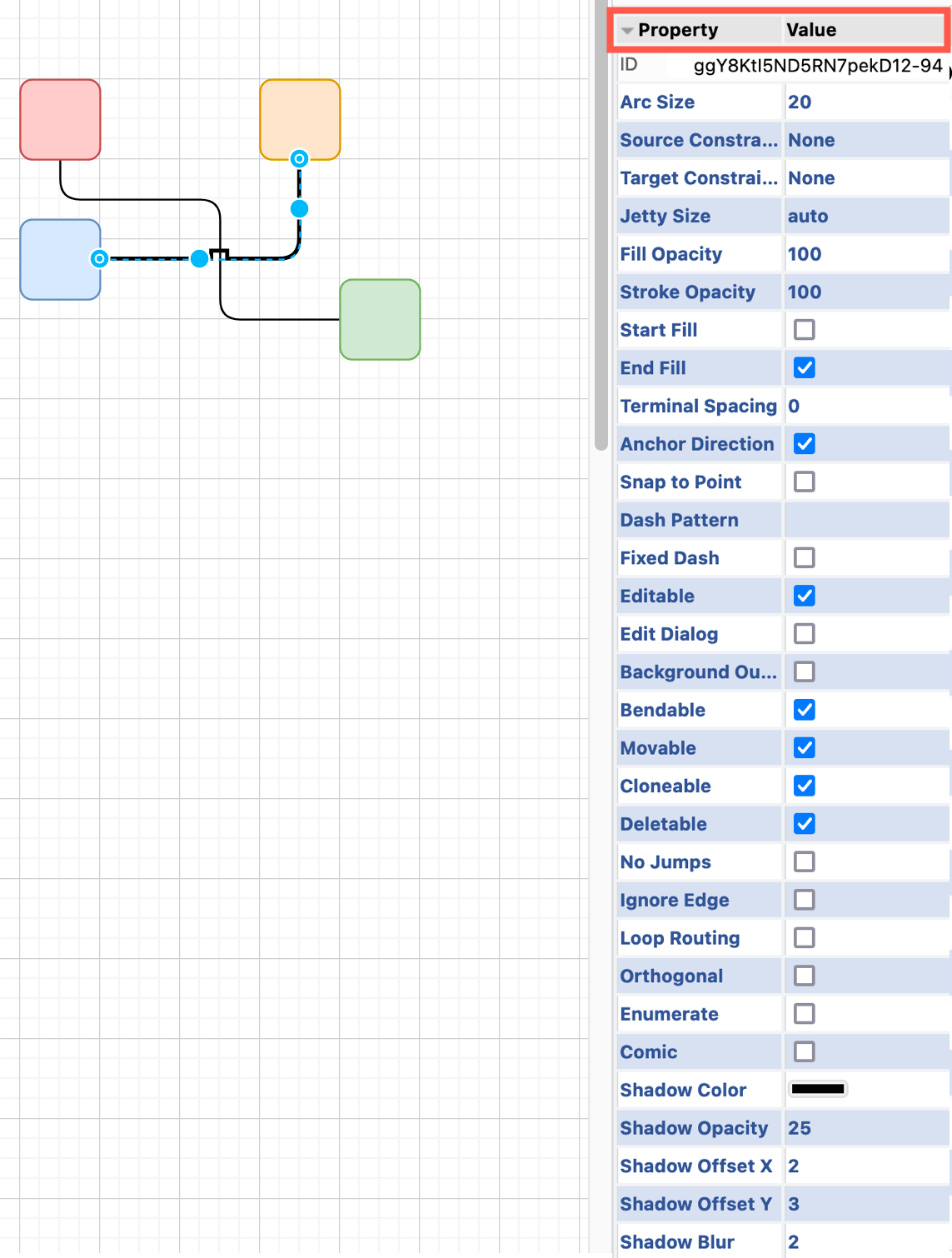

Edit the values in the property list at the bottom of the Style tab to change additional connector style options.
Set a default connector style

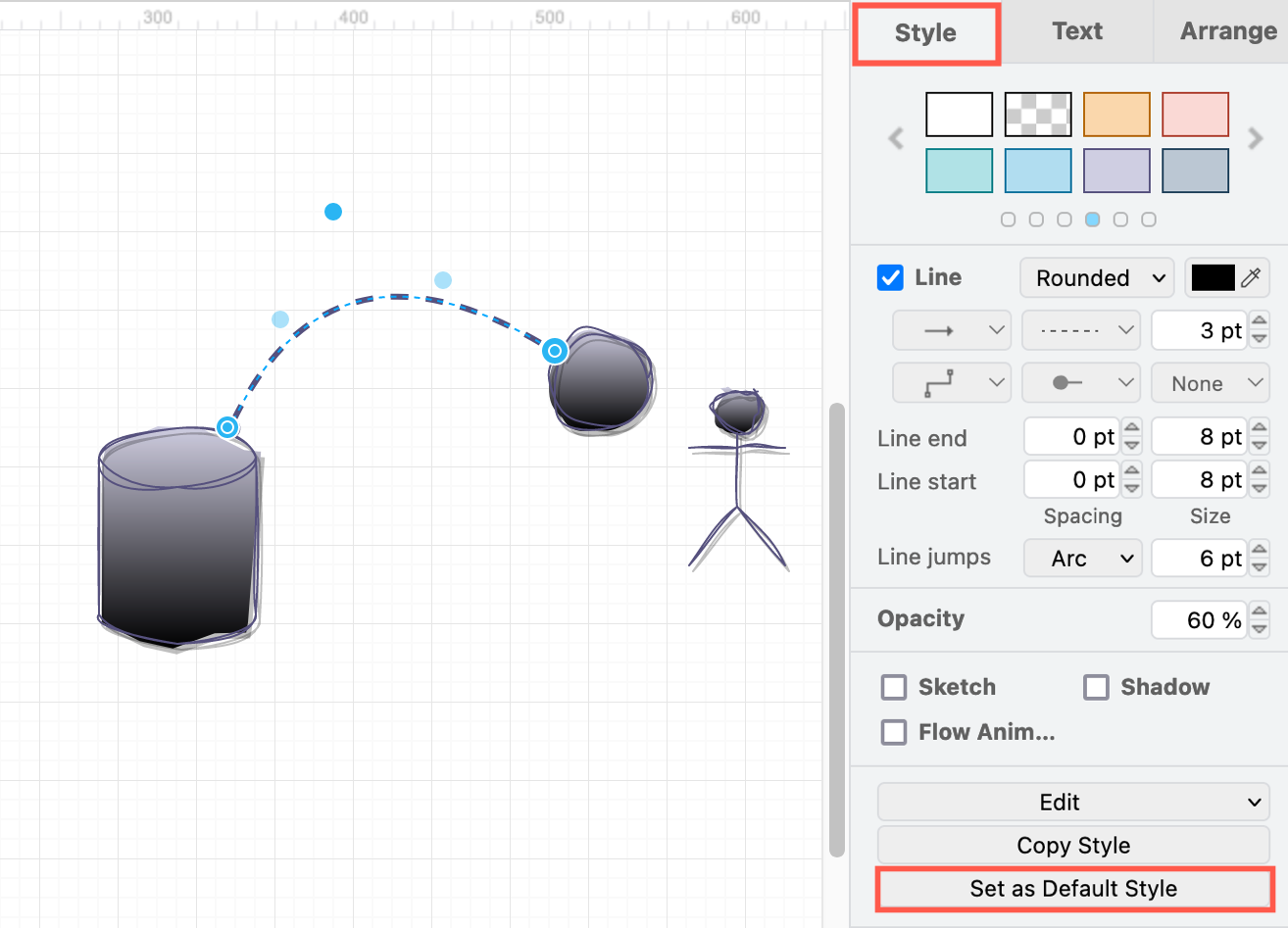

Style a connector on the drawing canvas first, then click Set as Default Style in the Style tab of the format panel.

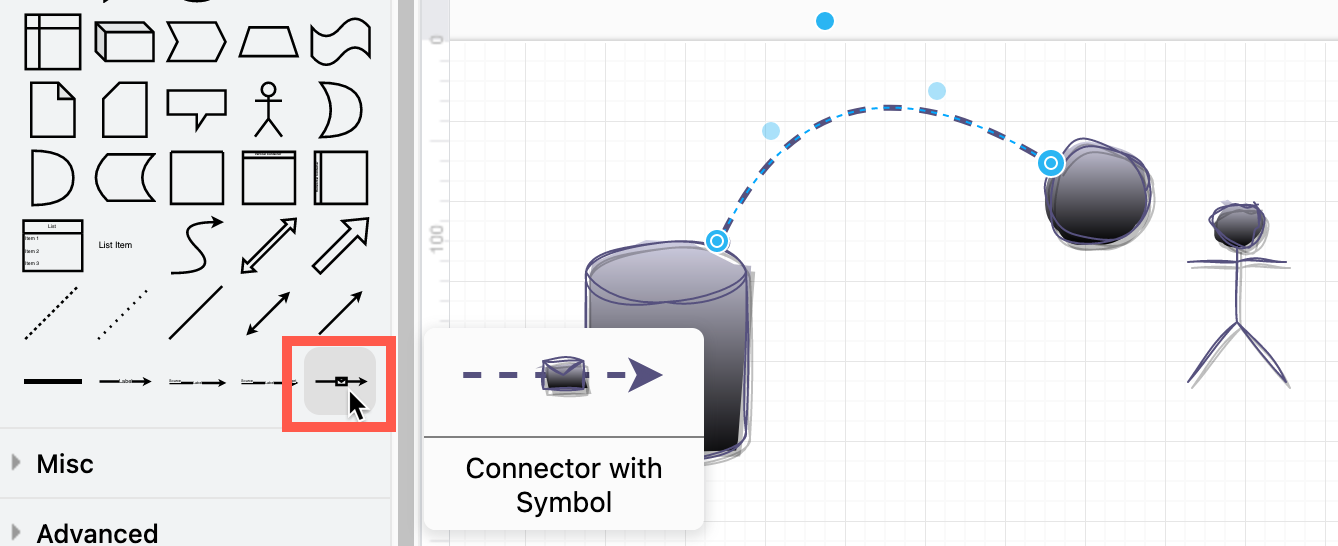

You can see if a default connector style has been set by hovering over a connector in the shape libraries.
Manually edit a connector’s style
key=value pairs to define the connector (edge) style in the diagram editor configuration.

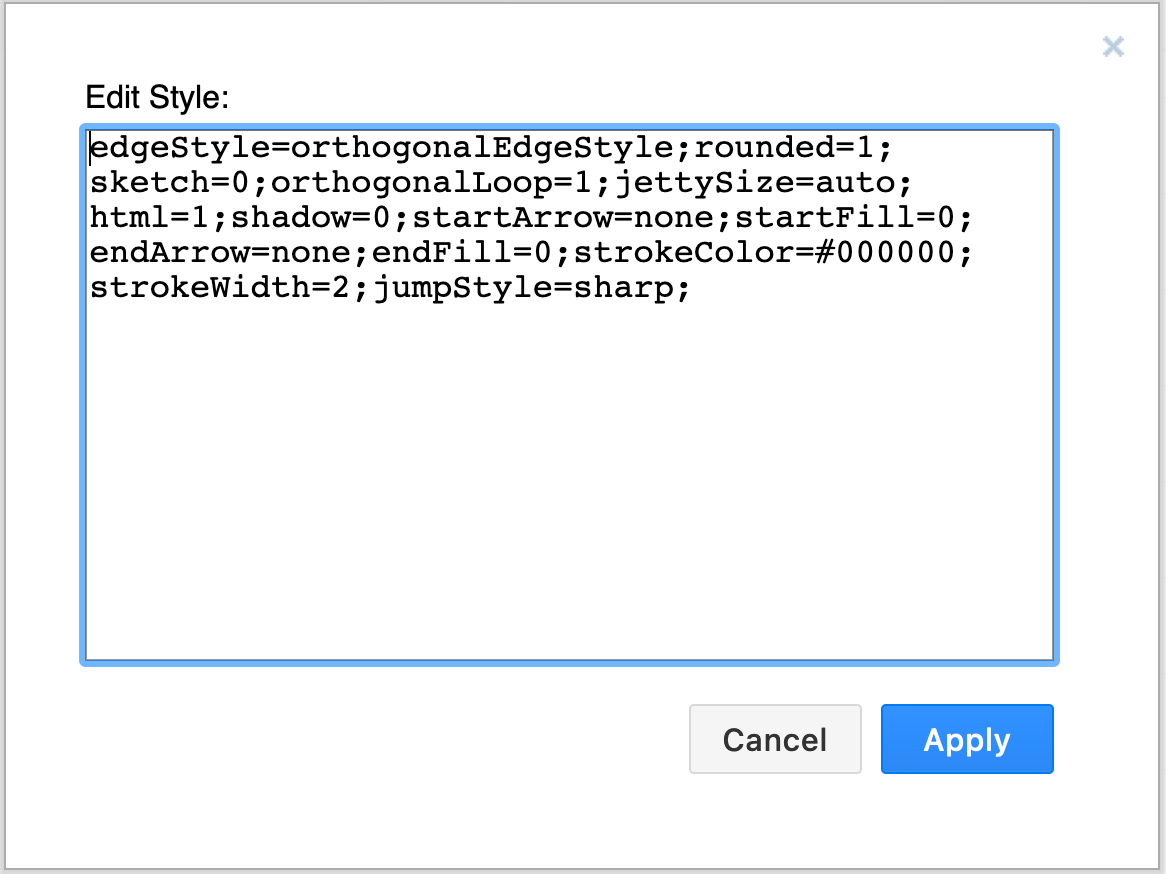

- Right click on a connector, then select Edit Style.
- Edit the style definition, then click Apply to save your changes.
Learn how to set a default connector and shape styles
