Set up custom template diagrams in Confluence Server

Custom templates can speed up diagramming and ensure users diagram with a consistent style.

Custom template diagrams are organised under a normal Confluence page, where template diagrams are added to child pages to sort the templates into custom categories. Anyone can add template diagrams to these pages or add new categories (pages) under the parent page, providing they have the appropriate permissions.

An administrator must add the parent page to the Configuration in the Confluence Server administration area.

Users will then see the custom categories and diagrams above the normal template categories in the template manager dialog.

This feature has been available since for Confluence Server version 6.5.0.

Create custom categories and custom template diagrams

  1. Create a parent page in your Confluence instance, ideally in a location where all users have read permission. If a user does not have read access, they won’t see the diagram in the template manager.
  2. Create child pages for each category and add your custom template diagrams to those pages.

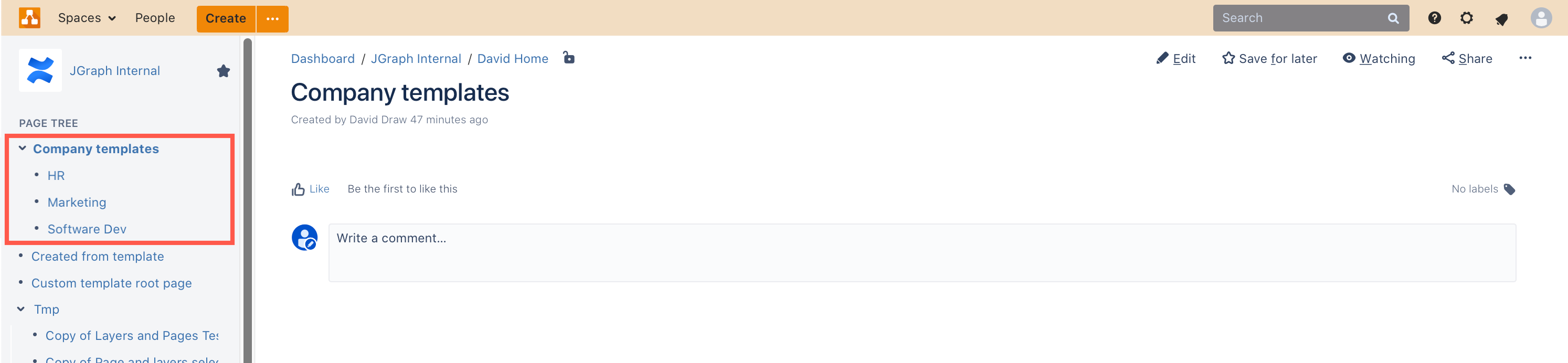

    Set up a parent page and child pages for your custom diagram templates and their categories

Configure to use your custom templates

  1. As an administrator, first copy the URL of the parent page above the custom template category child pages. Click on the gear icon, then on General configuration.
  2. In the left panel, under the add-on heading, click on Configuration, then select the Configuration tab.
  3. Paste the URL you copied in the first step into the Custom templates configuration page field.
  4. Click Save changes.

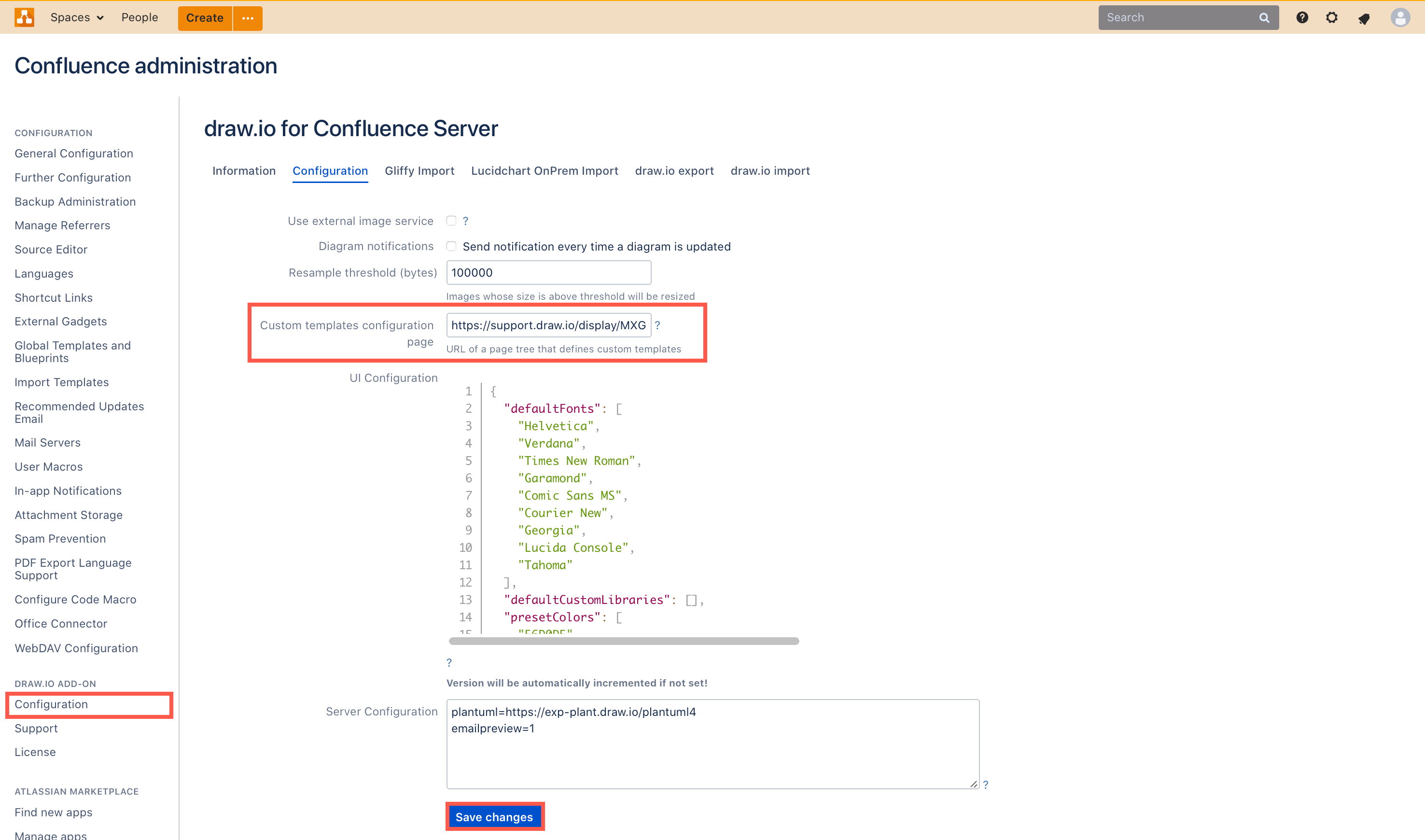

    Add the custom templates parent page's URL to the configuration in the Confluence administration

Use a custom template

When a user creates a new diagram, or inserts a template diagram, they will see your custom templates and categories above the standard templates in the template manager dialog.

  1. Edit a page and add the macro (type {drawio).
  2. Select a template in the template manager dialog, then click Create. A copy of the template diagram will be attached to the page - you can freely edit this diagram without changing the template.

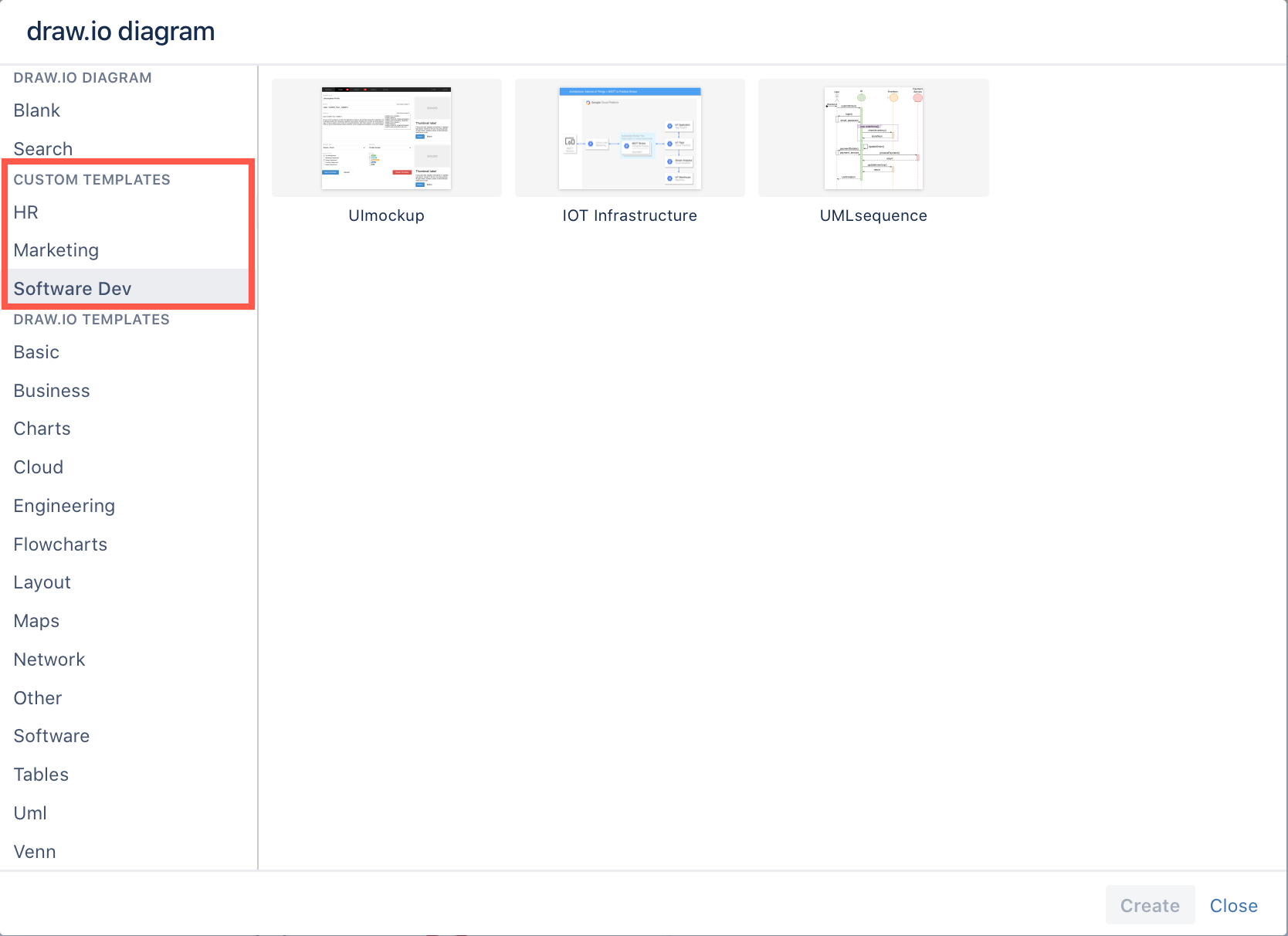

    Custom templates in the template manager

Share access to custom templates: Administrators must set appropriate read permissions for the config space in the Confluence instance so that all users can access these custom libraries.
