Move around a diagram on the drawing canvas

There are many different ways to explore your diagram and navigate around the drawing canvas. Try them out and use the ones that feel most natural to you.

To reset the view of the drawing canvas at any time, select View > Reset View from the menu, or press the Home key.

Zoom in and out

Zooming in or out makes your diagram appear on your screen as larger or smaller.

  • Use the Zoom In/Zoom Out tools in the toolbar.
  • Select View > Zoom In or View > Zoom Out.
  • Hold down Ctrl on Windows, or Cmd on macOS and use the scroll wheel or press + or - keys on the number pad to zoom in or out.

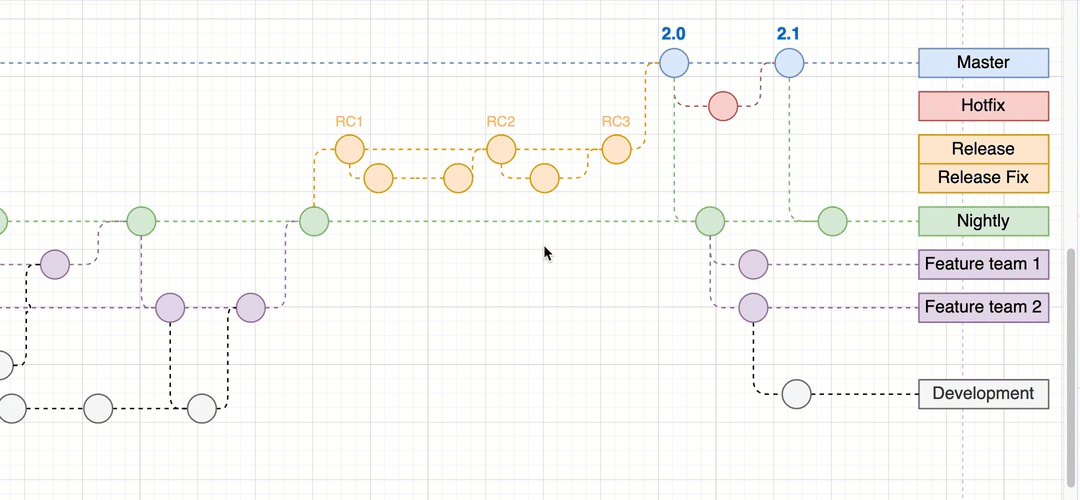

    Hold down Ctrl on Windows or Cmd on macOS and use the mouse scroll wheel to zoom in and out

Touchscreen: If you are using on a mobile device, make sure nothing is selected in your diagram, then pinch the canvas with two fingers and push them outwards to zoom out, or pull them together to zoom in.

Pan or scroll

  • Drag the scroll bar on the right of the drawing canvas to move up and down. Drag the scroll bar that is underneath the drawing canvas to move left or right.
  • Right-click/middle-click and hold your mouse button down and move the mouse to pan around the drawing canvas.
  • Use the scroll wheel on your mouse to move the canvas up or down.
  • Use the cursor (arrow) keys on your keyboard to move up, down, left or right.
  • Select View > Outline, or press Ctrl+Shift+O on Windows or Cmd+Shift+O on macOS, then drag the blue highlighted section around to move the drawing canvas.

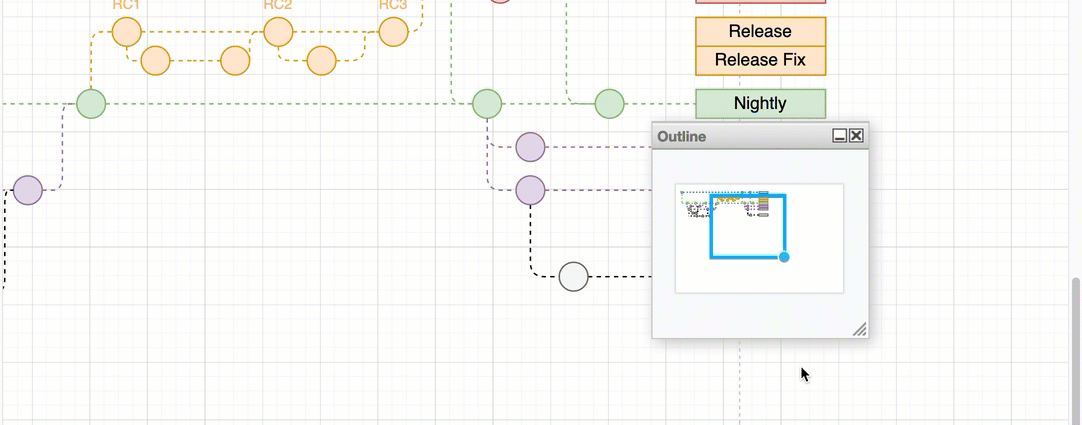

    Move the drawing canvas using the outline panel - click View > Outline, then drag the blue highlighted area

Touchscreen: Make sure nothing is selected in your diagram. Tap and drag your finger in a blank area of the drawing canvas to move it around. You can also use the Outline panel on a touchscreen, as shown above.
