Enable Google Drive and OneDrive integration in Confluence Data Center and Server

The draw.io app for Confluence Data Center and Server allows you to embed diagrams you have stored in Google Drive and One Drive. This option is disabled by default, and needs to be enabled in the draw.io app configuration by a Confluence administrator.

  1. As an administrator, go to the Confluence Administration, then select Configuration under the draw.io add-on section.
  2. Select the Google Drive/OneDrive Integration tab.
  3. Select Simple integration if you draw.io to communicate directly with the cloud platforms. Alternatively, if you have created an app within Google Drive/One Drive and want all communication with the cloud platforms to go via your own servers, select Full integration.
  4. Click Save changes.

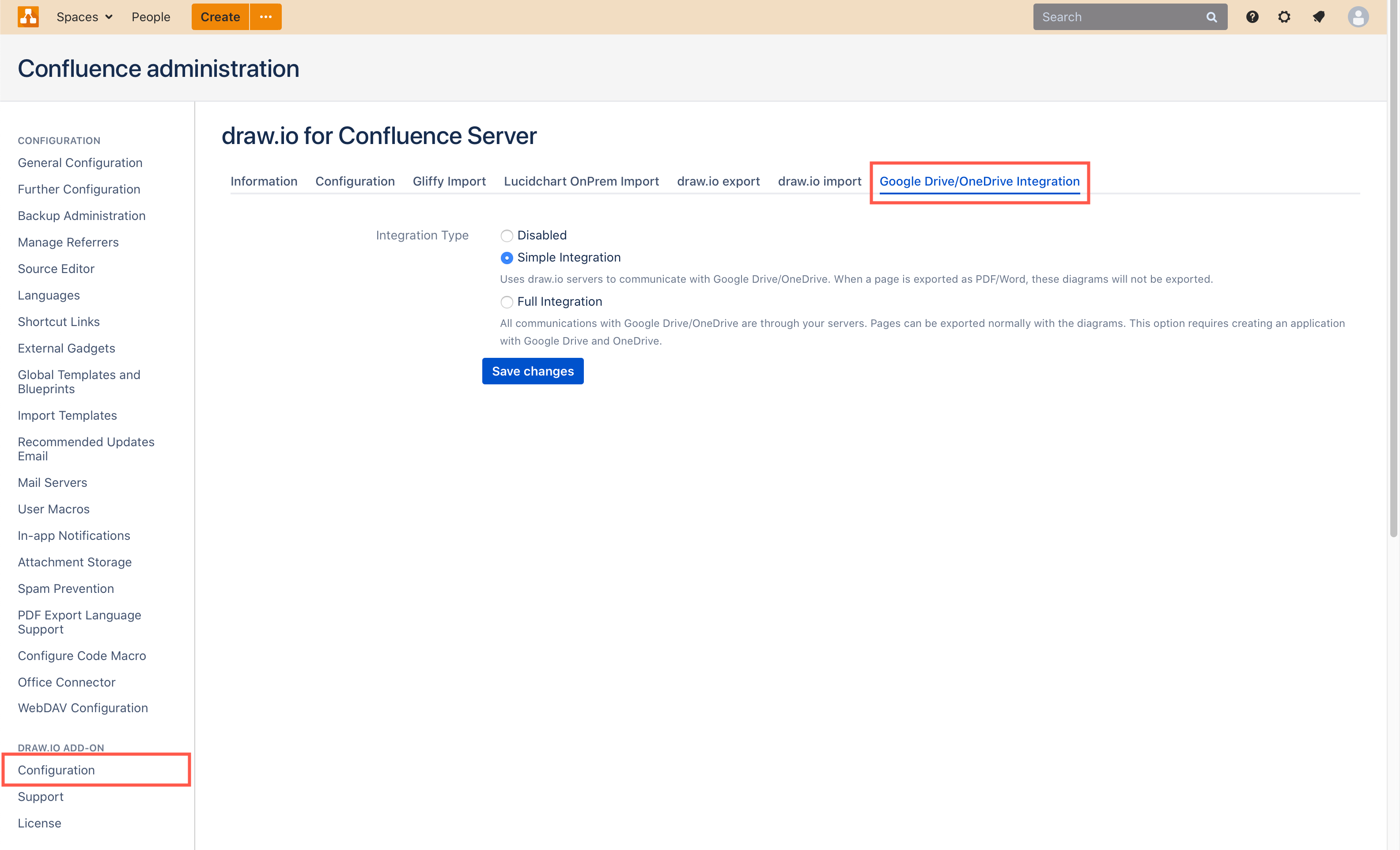

As an administrator, enable the draw.io Google Drive/One Drive integration in Confluence Data Center and Server
