Print and fit a diagram to a page

When you print a diagram, you can choose to fit it to the page, or print it across multiple pages.

  1. Select File > Print from the menu in to open the print options. Alternatively, press Ctrl+P on Windows or Cmd+P on macOS.
  2. Click on the Fit to radio button, and type the number of sheets of paper across, and pages down that you want to stretch your diagram over. If you want to fit this page of your diagram onto a single sheet of paper, leave the values as 1 sheet across and 1 sheet down.

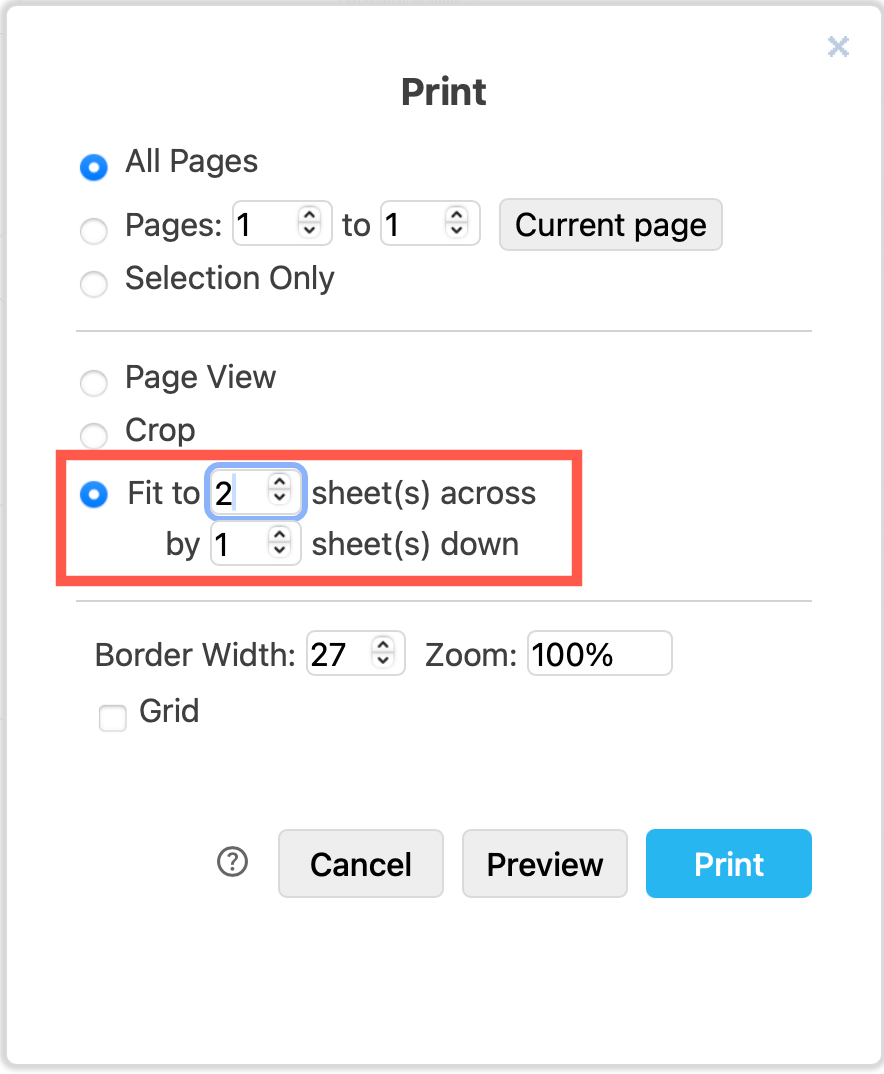

    Select Fit to, and enter the number of pages you want to stretch your diagram across
  3. You’ll see a preview of how your diagram will be printed along with your operating system’s printer dialog. Choose your printer and follow its instructions to print your diagram.

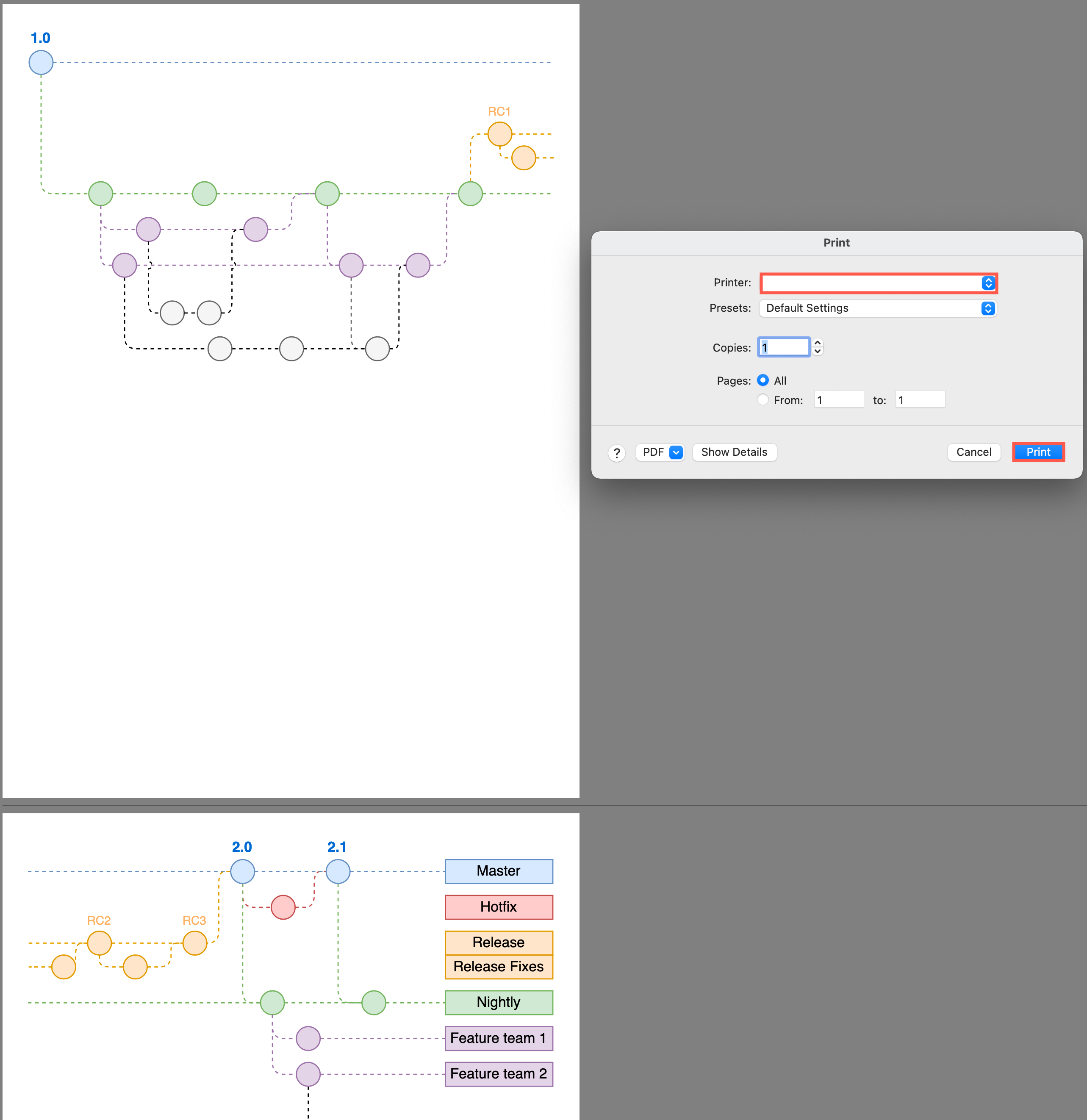

    You can stretch a diagram to print over multiple pages by changing the number of sheets it prints across and down
    Tip: Instead of printing to a printer, you can print your diagram that you have fit over multiple sheets to a PDF file.
