Using in Confluence Cloud is a fully featured diagramming tool, with large shape libraries and templates for a wide range of diagrams.

Administrators: Go to the for Confluence Cloud administration guide to see how to mass-import Gliffy diagrams, customise, troubleshoot problems, and manage licenses.

Start here if you are a user who is new to and diagramming.

On this page:

Getting started

With, you have two different editors. Both let you create simple to complex diagrams. Pick whichever you prefer to use.

Add the Board macro

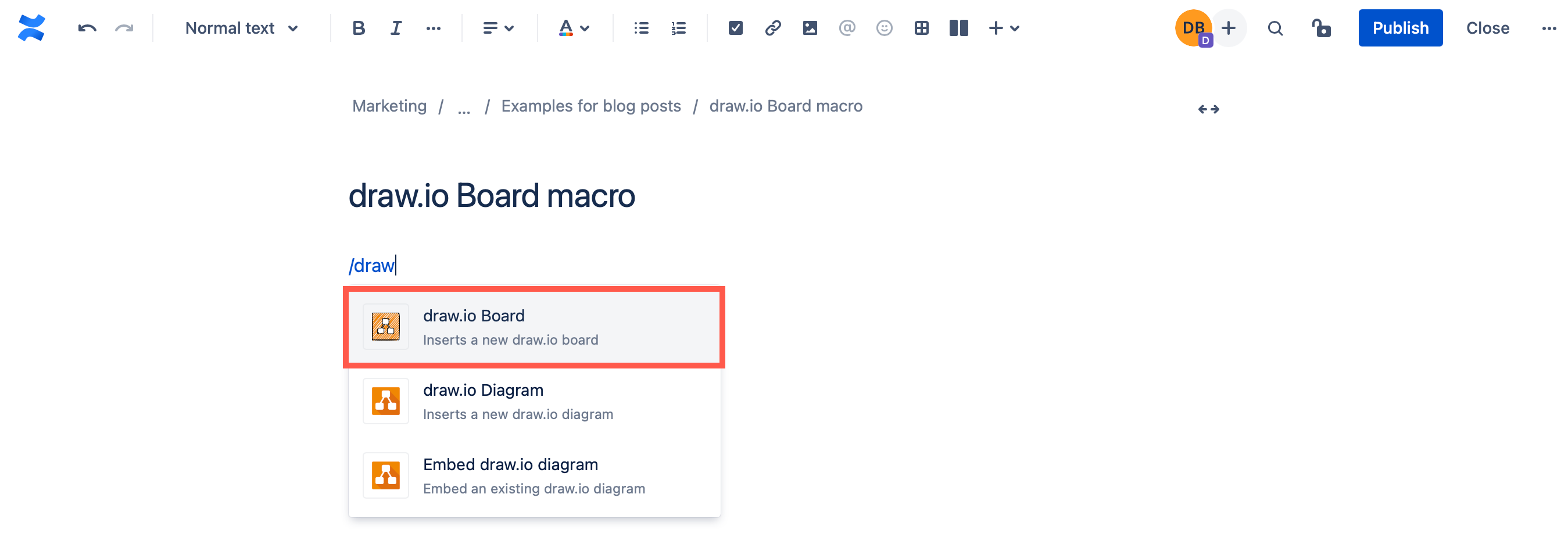

Online whiteboard: Edit a Confluence page, type / and select the Board macro to add a simple online whiteboard to a page.
Add the Board macro to a Confluence Cloud page

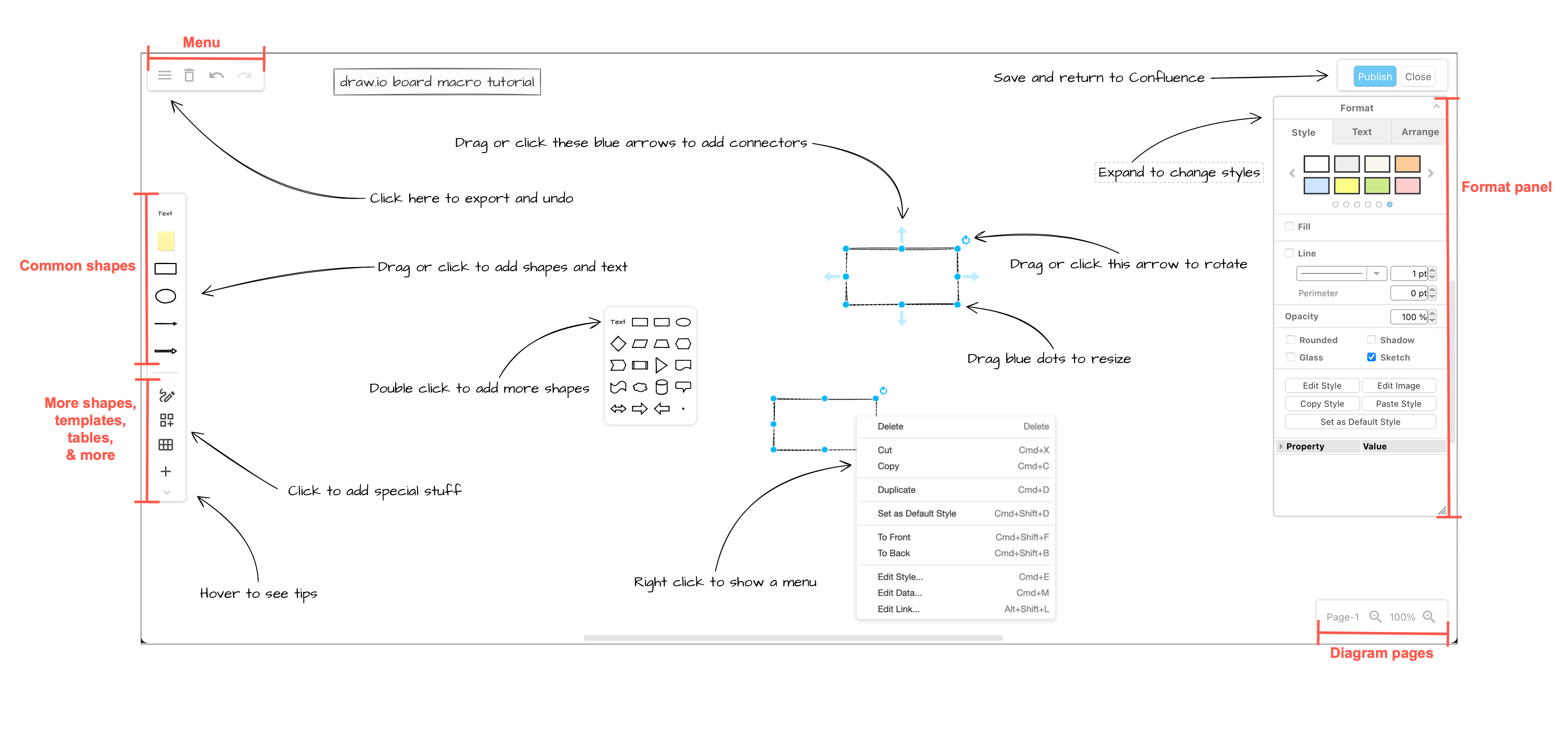

This is the layout and tools in the Board editor.
Add the Board macro to a Confluence Cloud page

Add the Diagram macro

  1. Type // and select the Diagram macro to use the more complex Diagram editor layout with immediate access to more tools.

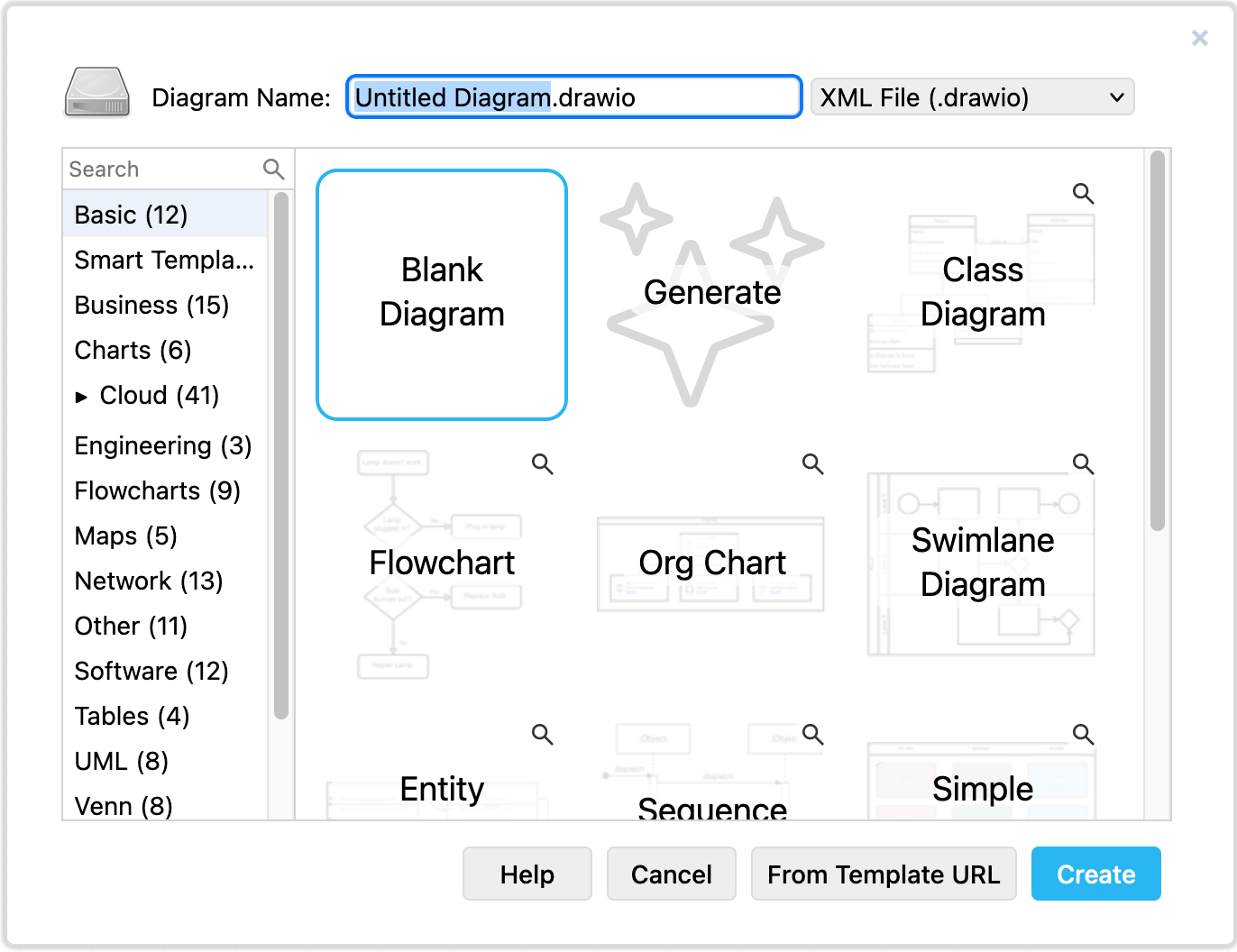

  2. Select the Blank Diagram template, enter a filename for your diagram, and click Create.
    Choose a diagram template when you create a new diagram at

This is the layout and tools you will see in the Diagram editor.
Atlassian theme in for Confluence Cloud

Tip: If more than one person is editing a diagram in Confluence Cloud at the same time, you will see their cursor and name move around your diagram or board.

Draw a diagram

Step through this tutorial to draw a basic flowchart. Our free online version of at has the same layout and tools as the Diagram macro as both are developed by us here at JGraph.

  • add and connect shapes using the shape libraries on the left
  • add labels to the shapes and connectors on the drawing canvas
  • style your diagram using the tools in the format panel on the right.
    Create your diagram from shapes, connectors and text, and add styles

To see the wide range of diagrams you can create with, go to our gallery of examples and templates.

Publish the diagram to the Confluence page

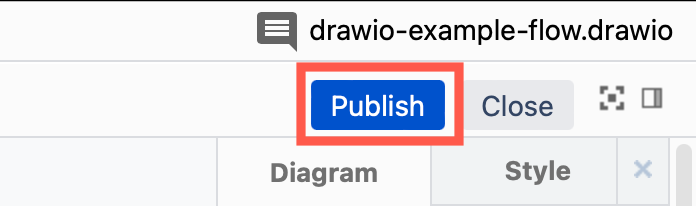

Click on the Publish button in the top right corner of the Board or Diagram editor to save your diagram and return to the Confluence page.
Publish your diagram to the Confluence page

View a diagram

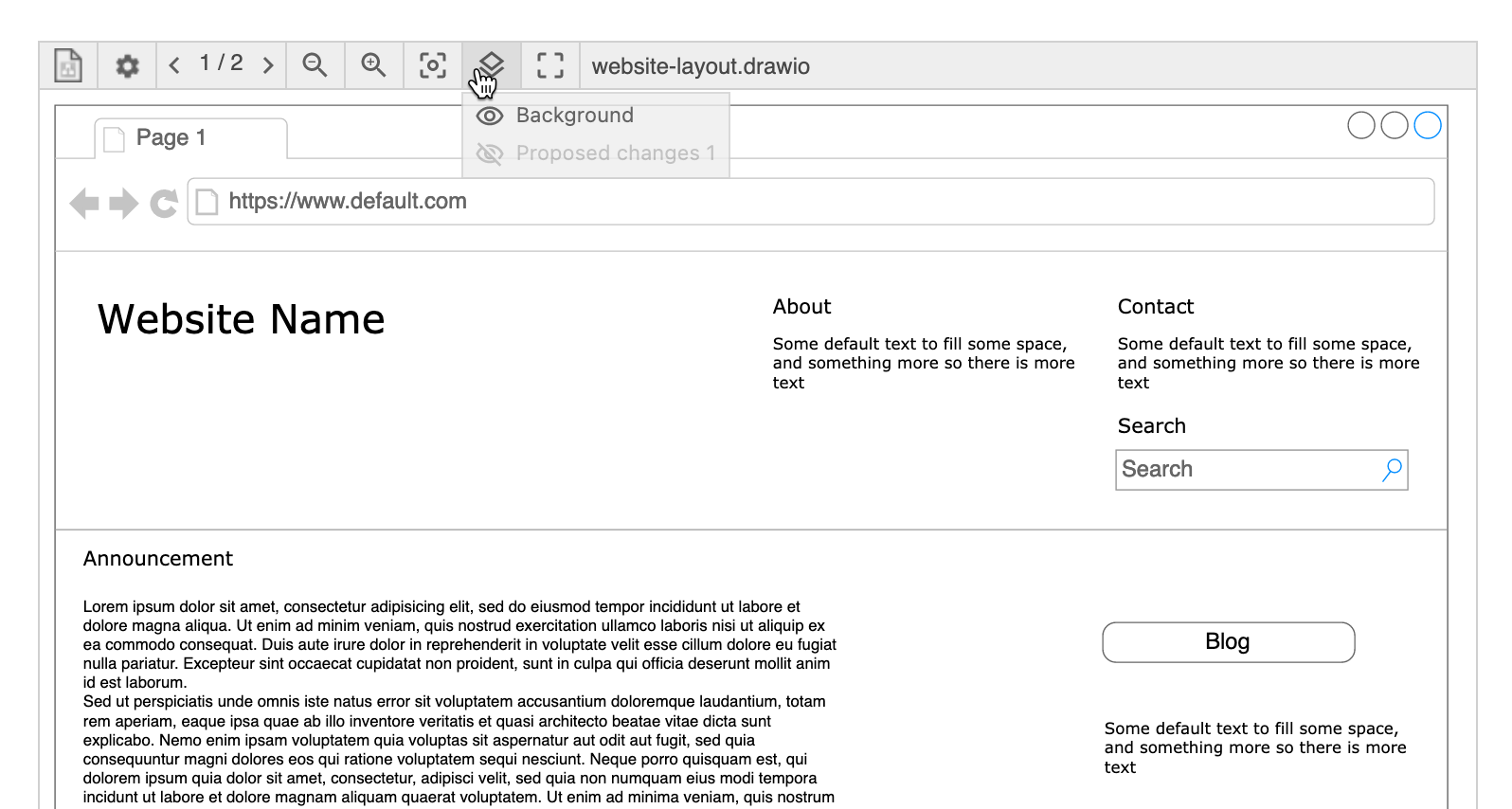

Hover over a diagram in a Confluence page, and you’ll see a toolbar. Use this to step through diagram pages or view/hide layers, if the diagram has them.
Use the viewer toolbar to zoom in and navigate a diagram on a Confluence Cloud page

See how to change how your diagram appears on the Confluence page.

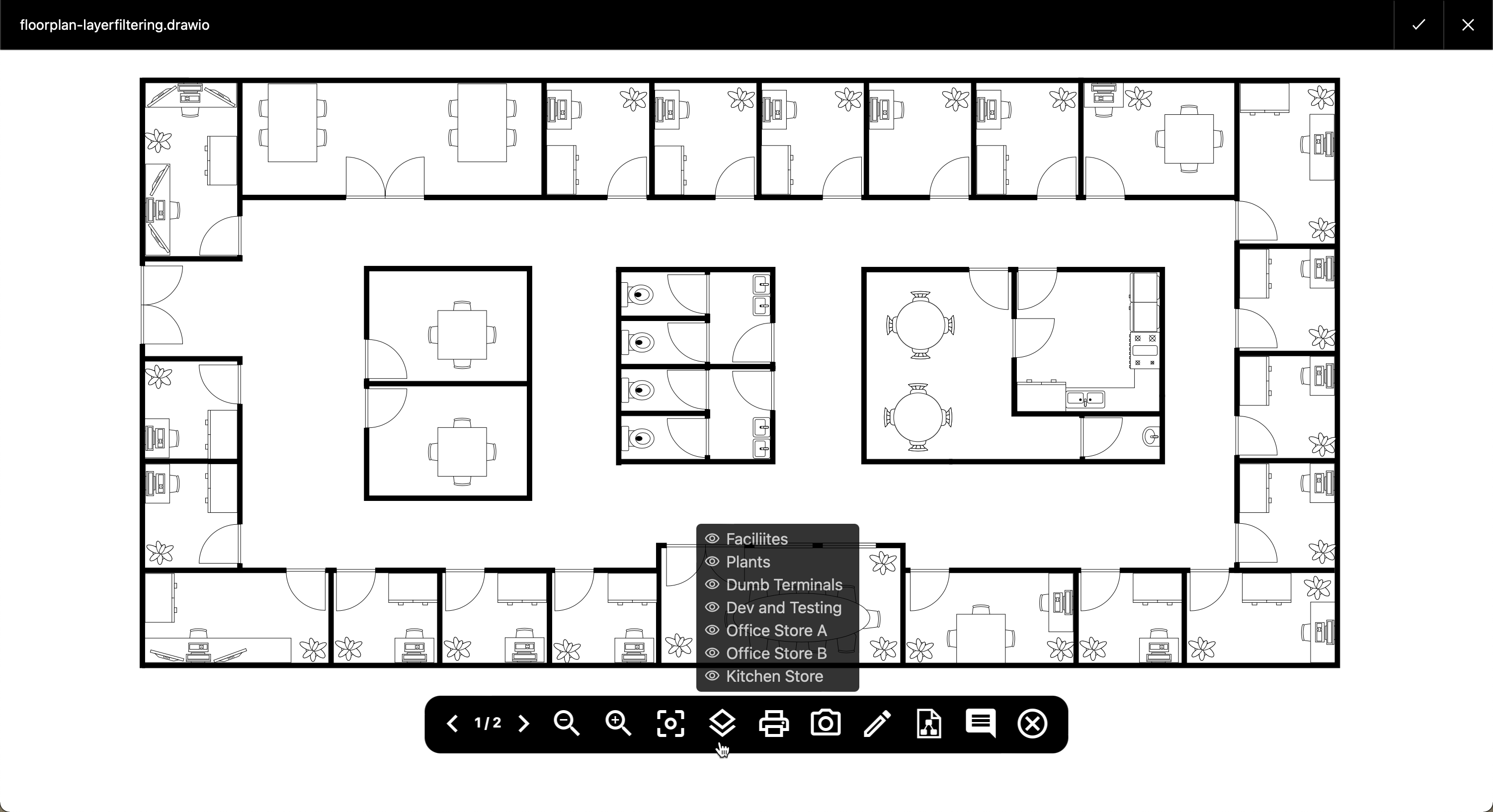

Click on the diagram in the Confluence page to open it in the lightbox viewer.

  • Hover over the diagram to see the viewer toolbar.
    • Zoom in and out, print or export the diagram from this toolbar.
    • If the diagram has them, step through diagram pages and select the layers to display.
  • Click on the cross or the tick in the top right to return to the Confluence page.
    Use the viewer toolbar to zoom in and navigate a diagram on a Confluence Cloud page
  • Click on the pencil in the toolbar to open the diagram in the editor.

See all diagrams in Confluence

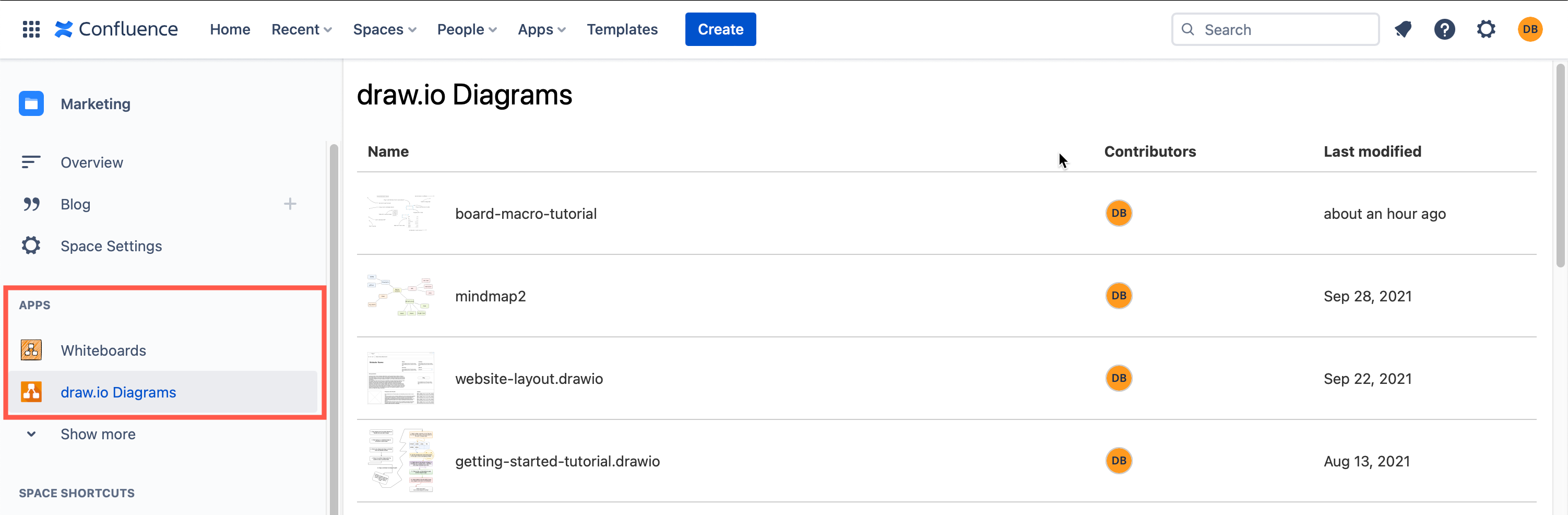

In the left navigation section, click on the Diagrams or Whiteboards section to see all of the diagrams or boards that are in the Confluence Cloud instance.
See all of the Diagrams and Boards in a Confluence Cloud instance

Work with diagrams in Confluence Cloud

Reuse existing diagrams in your Confluence instance or embed diagram files saved Google Drive and OneDrive.

Recover a diagram from an unpublished page in Confluence Cloud or one that was moved to another page.

Print these keyboard shortcuts to diagram faster in

Refer to the administration guide to see how to customise for Confluence, convert Gliffy diagrams, add template diagrams, and more.
