When does it make sense to generate a diagram?
In draw.io, the smart templates feature allows you to generate a diagram from a text description. It’s easy to get hyped up about quickly generating visual documentation, but when should you generate a technical diagram? What types of diagrams can’t be generated?
First, let’s see how smart templates work in draw.io.

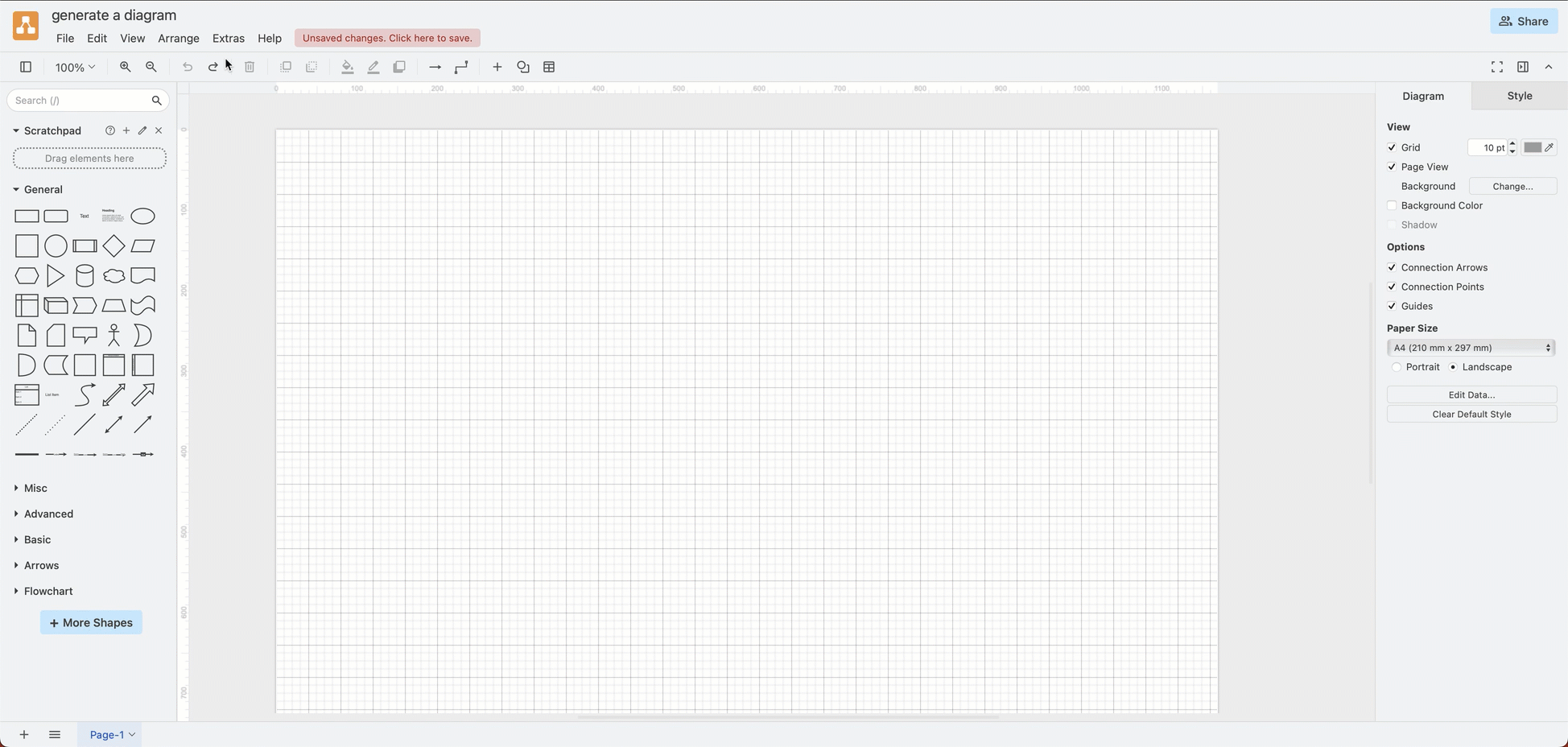

Generate a diagram with a smart template
- Select Arrange > Insert > Generate to go directly to the smart templates section in the draw.io template library.
- Alternatively, start a new diagram and select the Smart Templates section.
- If you are using draw.io with the Simple, Minimal or Sketch editor themes, select
+
in the toolbar then Generate
- Select your Diagram type from the list.
- Write a simple and accurate text description of your diagram, then click Generate
- Click on the diagram preview to expand it.
- If you like what you see, click Insert.
- If not, click Generate again to generate a different diagram for the same query, or edit your query and regenerate the preview.
Now, you can edit, add to and style your generated diagram freely using the draw.io shape libraries and format panel.
Learn more about smart templates in draw.io and how to write a good query.
When should you draw your diagram manually?
It’s probably easier to explain when not to generate a diagram.
Draw a diagram following a standard manually
Diagram generators output mostly simple shapes - rectangles, lifelines, circles, connectors and so on. If you need BPMN process flows, C4 models, AWS or GCP network diagrams, and so on, enable the appropriate shape libraries in draw.io, and draw your diagram manually so it follows that technical standard.
Note: UML sequence and state diagrams may be an exception here - there are enough examples in most generator’s training set that they can produce reasonable generic diagrams.
Document existing systems or processes manually
The smart templates feature in draw.io can only work from your short text description - it does not know any information about your existing infrastructure or processes. Therefore, it can’t draw accurate technical diagrams to document existing code, systems, workflows or networks, or interfaces to other systems and external processes.
Draw unsupported diagram types manually
There are many types of technical and business oriented diagrams that are not supported by generators - fishbone cause/effect diagrams, rack diagrams, interface mockups, Kanban boards, infographics and other marketing diagrams (5C, SWOT, PEST), timelines and roadmaps, and many more technical diagram use cases that you can use draw.io for.
Tip: Most of the diagram types supported by Mermaid syntax are supported by diagram generators. If you have a preferred diagram generator outside of draw.io, ask it to export Mermaid code - you can then insert the Mermaid code into draw.io and then edit and style your generated diagram afterwards.
When should you generate a diagram?
Generated diagrams can be useful to brainstorm generic components of a system, or outline a common workflow, or draw a mindmap of a concept, perhaps to plan for an event or structure a document or presentation.

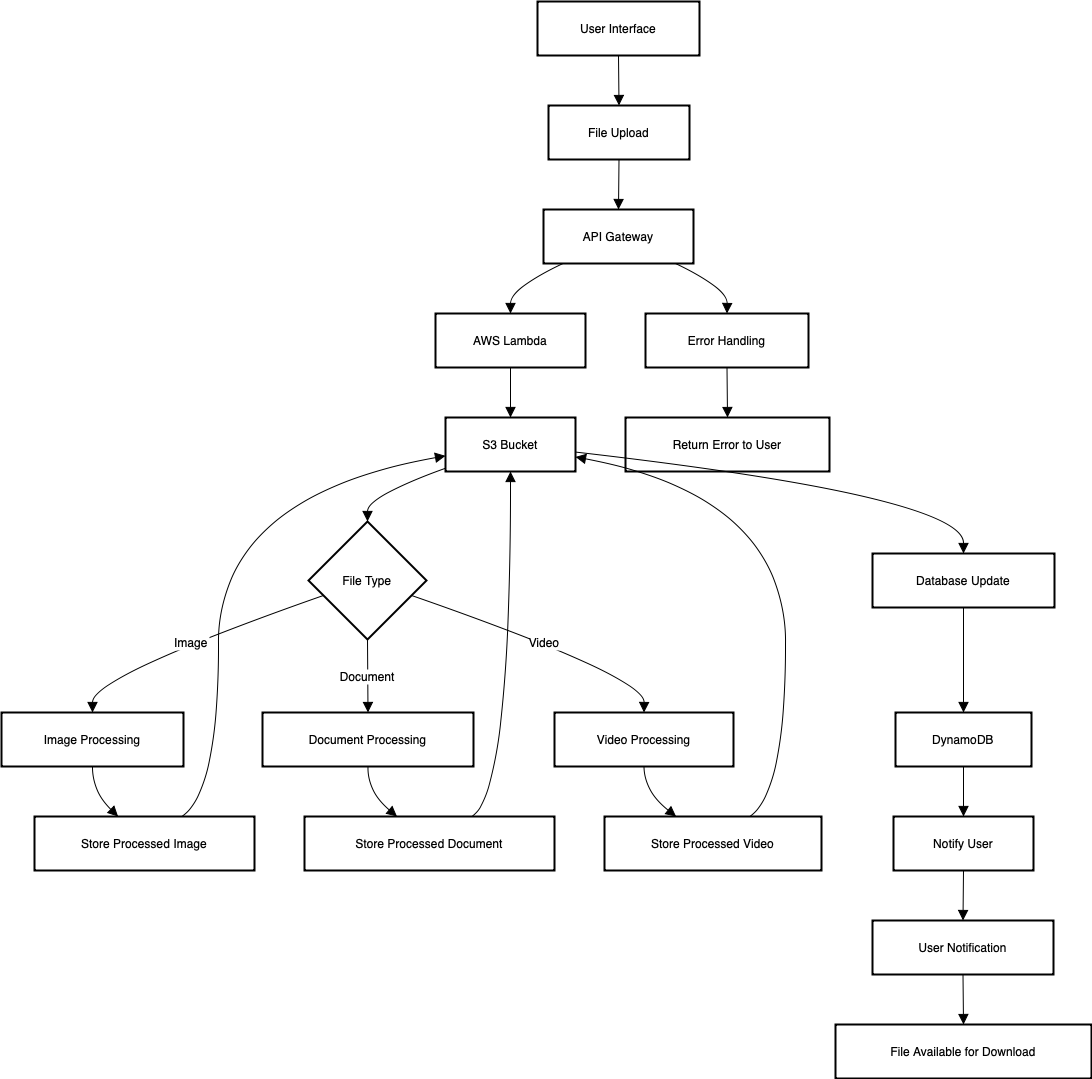

For example, you could ask it to generate a flowchart of a “browser-based file storage system using a serverless AWS pattern
”.
It won’t be correct, or have precise details of the system, but it gives you a general starting point that you can then use to draw your actual system.
Limitations of generated diagrams

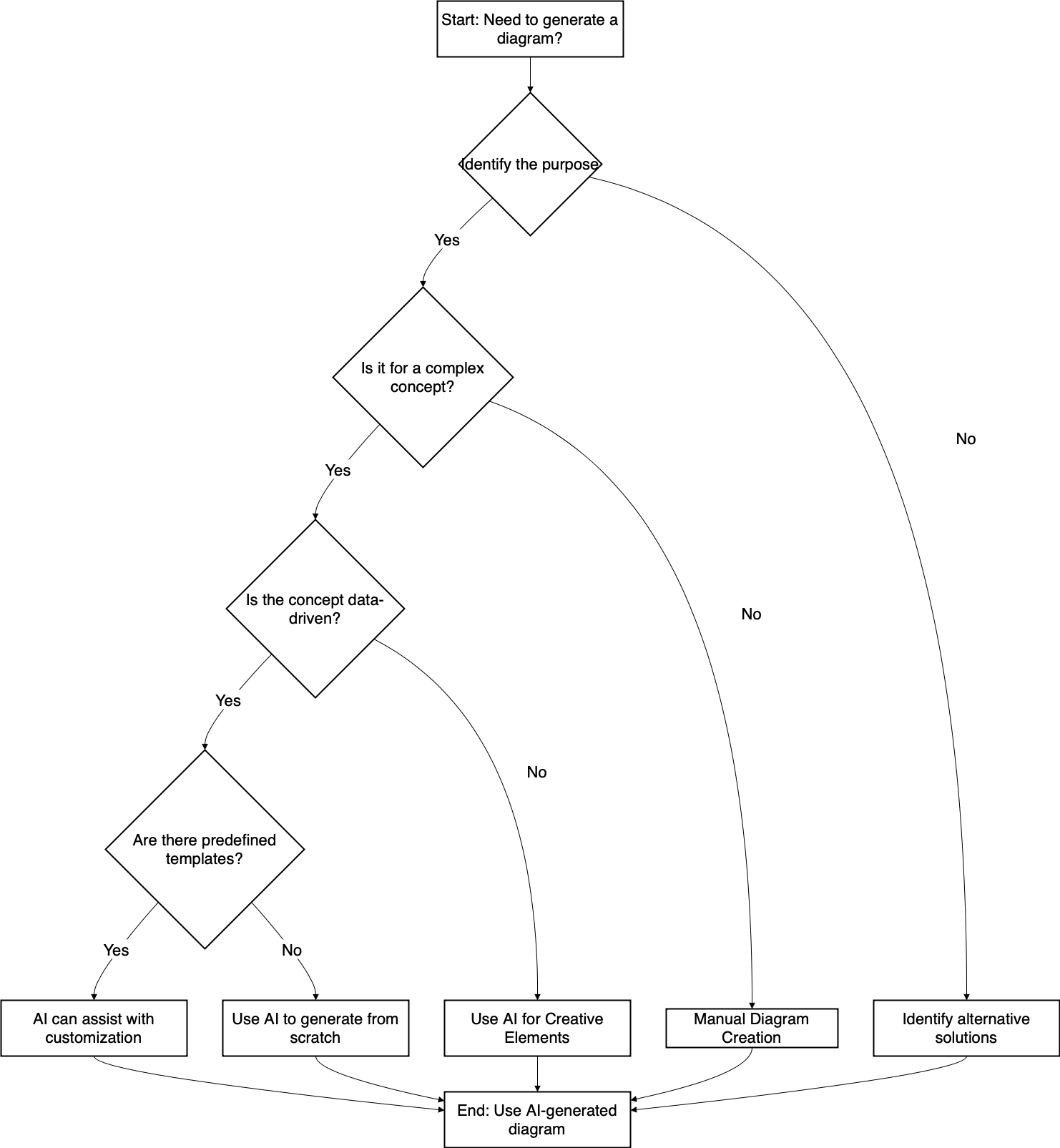

Keep in mind that diagram generators do not sanity check anything in your diagram - there may be completely illogical elements. For example, when asked to generate a flowchart or decision tree for the query “When does it make sense to use AI to generate a diagram
”, there are a few problematic sections.
- Immediately after the decision to use Manual Diagram Creation, it instructs you to Use AI-generated diagram.
- The Start task or decision in the flow is also unclear - Need to generate a diagram?.
The biggest limitation for technical diagrams for documentation purposes is that diagram generators do not know about your existing system and processes, and therefore any diagram you try to generate will not be accurate.
Generators also won’t use your corporate style, specific layouts preferred by your team, or a diagramming standard that needs specific shapes, labels and connectors.
Most generators, including the draw.io smart templates feature, don’t have any memory of previous attempts, so they can’t refine an already generated diagram. Regenerating starts over from scratch every time.
Generating multiple iterations and hoping for a usable diagram that you can then clean up may be slower than manually drawing your diagram from scratch.
