If you were working on a diagram in a page in Confluence Cloud that was not published, and there was an error in your instance, or you were unable to Publish your diagram before a browser crash, for instance, you may find that the auto-save draft of the page does not include the draw.io diagram macro and the .drawio or .png versions of diagram are not in the page attachments.

If the diagram file exists in the list of draw.io diagrams (it has been published, at least once):

1. Go to the list of draw.io diagrams in your space, and click on the diagram you want to edit.

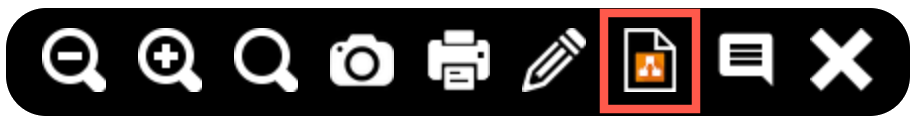

2. Hover over the diagram to see the toolbar, then click on Go to containing page to see the Confluence page that the diagram is attached to.

3. If you see the diagram macro in the page editor, continue editing your diagram as normal and publish the page.
   • If you don’t see the draw.io diagram macro, publish the page and recover the diagram file from the page attachments by following the steps below.

Recover a draw.io diagram from Confluence Cloud page attachments

If the diagram is not in the list of draw.io diagrams in your space, or is not visible on the page, you can recover it from the auto-saved .tmp file in the list of page attachments.

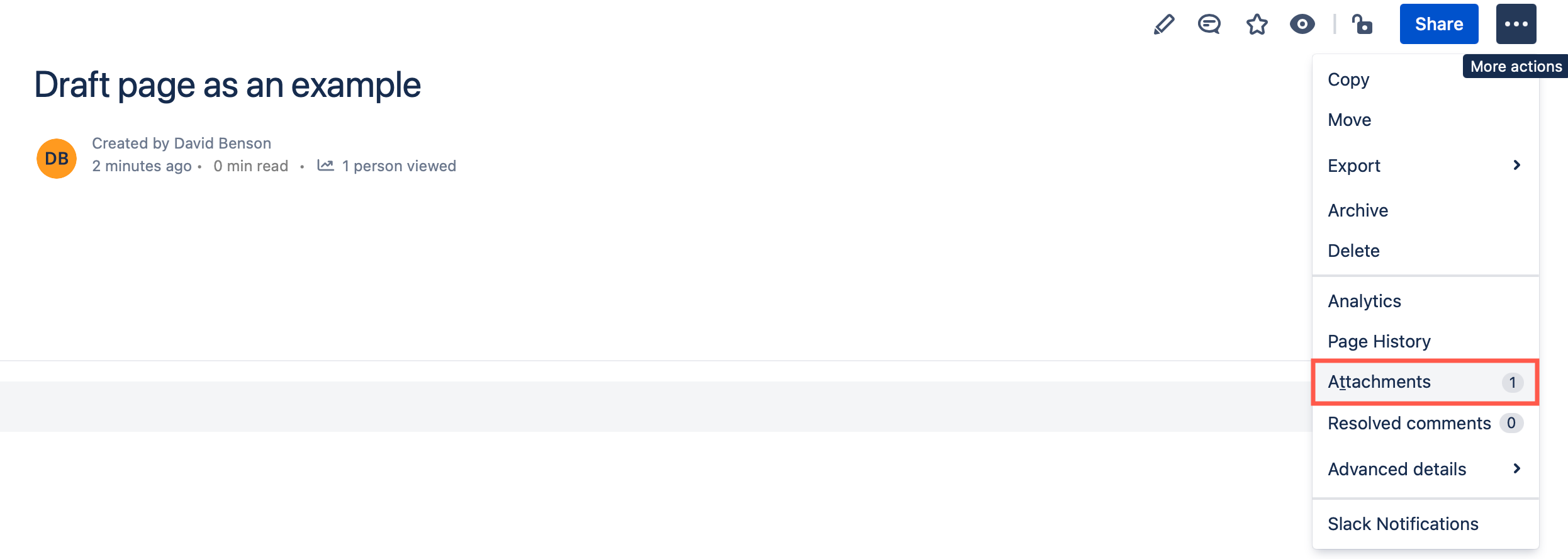

1. In page view mode, select … > Attachments from the menu at the top right of the page. Your page needs to be published to see this menu.

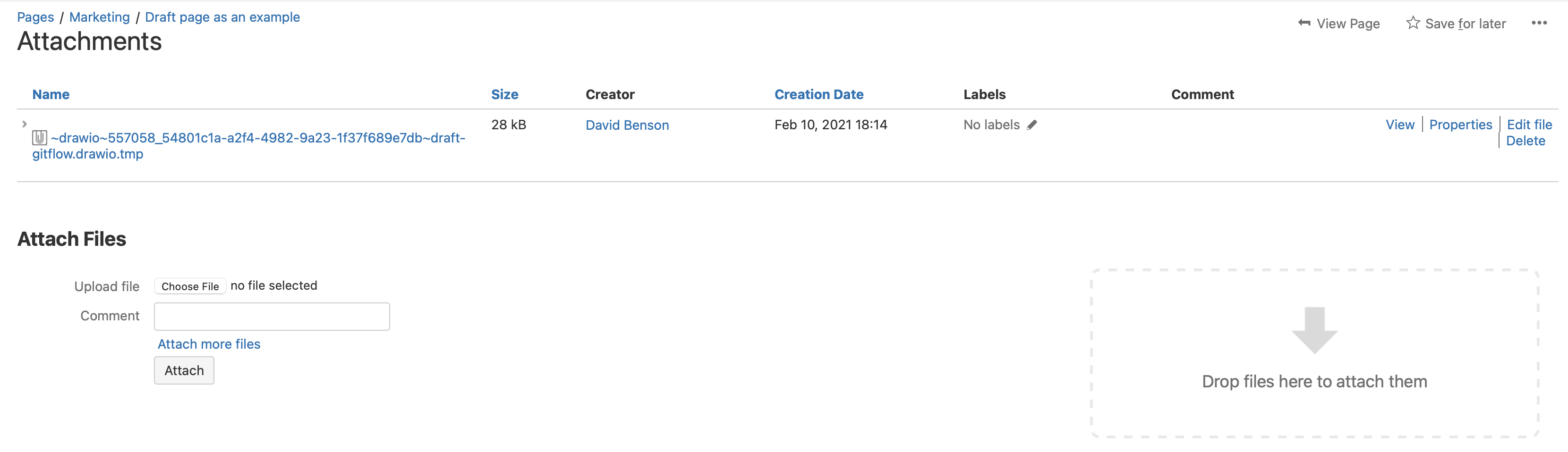

2. Look for the temporary file that would be the autosave of your diagram. It will look something like: ~drawio~557058:6008c1c5-1343-48f8-b77e-ba07d39beae0~DIAGRAM_NAME.drawio.tmp or ~DIAGRAM_NAME.drawio.tmp.
   Download this file to your device.

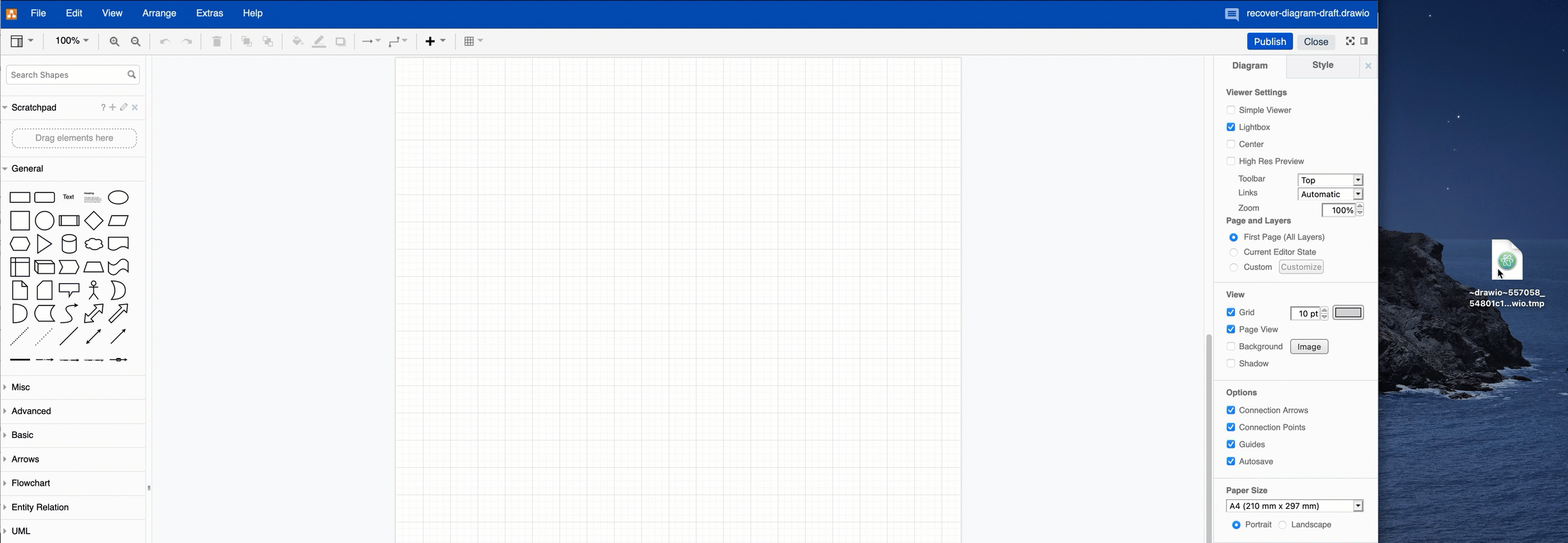

3. Return to the page editor, add a new draw.io diagram macro, and drag the .tmp file you previously downloaded into the draw.io diagram editor.


Recover a diagram that was moved to another page in Confluence Cloud

If you edit the diagram from the list of diagrams in your Confluence Cloud space, you may see the Diagram not Found dialog. This occurs when either a page has not yet been published, or when the diagram attachment has been moved to another page.

Recover a diagram that was moved to another page in Confluence Cloud

Restore an older published version of a diagram

If you want to recover an earlier version of the diagram on a page, without changing the page content via Confluence’s Page History, open the diagram in the editor, and use the draw.io editor’s Revision History to restore the older version.
