Change the font, colour and position of text labels in draw.io

While the dream of drawing technical diagrams is to be able to understand them with very little text, labels on shapes and connectors add essential descriptive elements. There are many ways to style text in draw.io - you can even use multiple styles in one label.

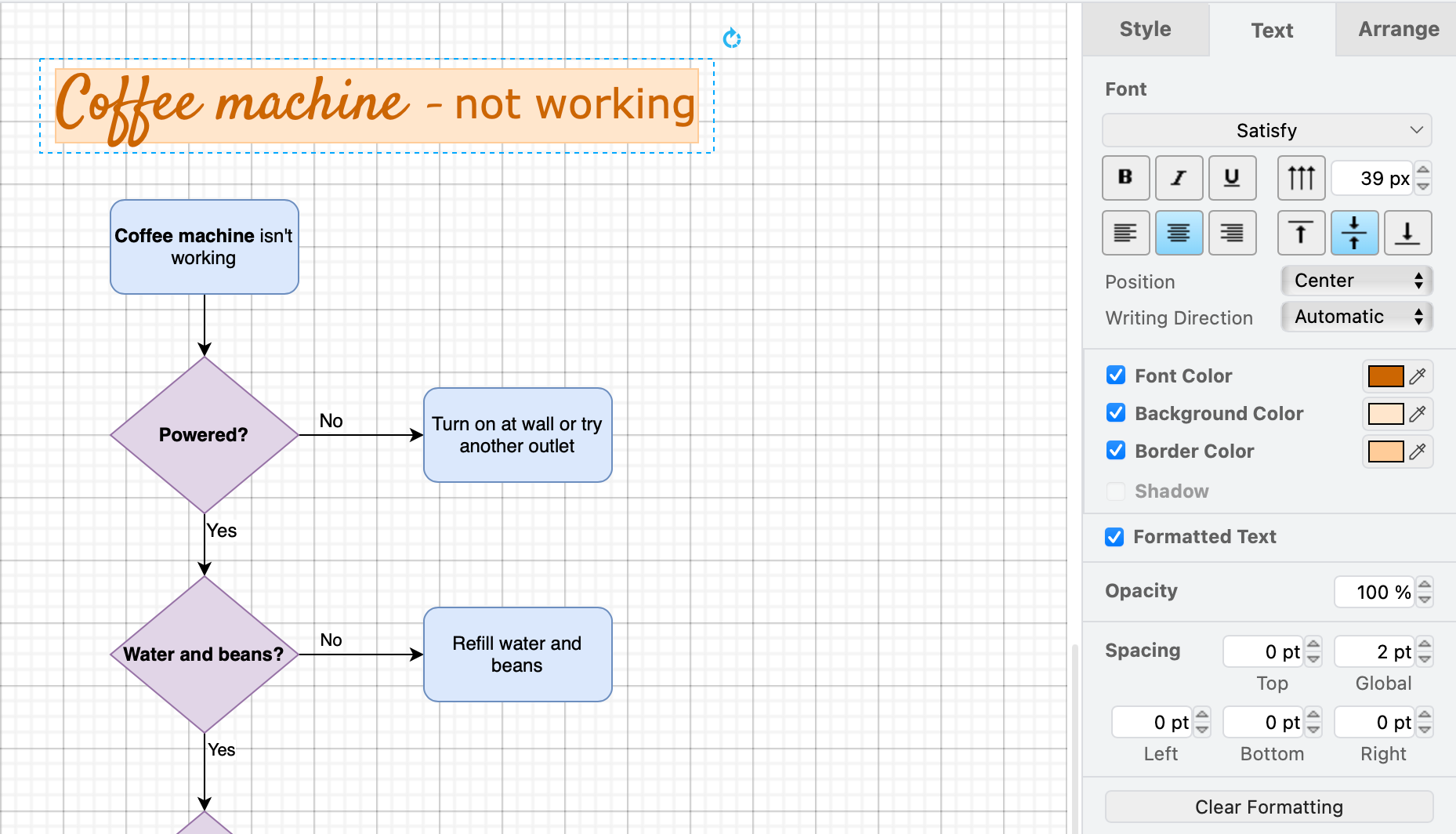

Select a different font to style text in draw.io

Add and select label text​

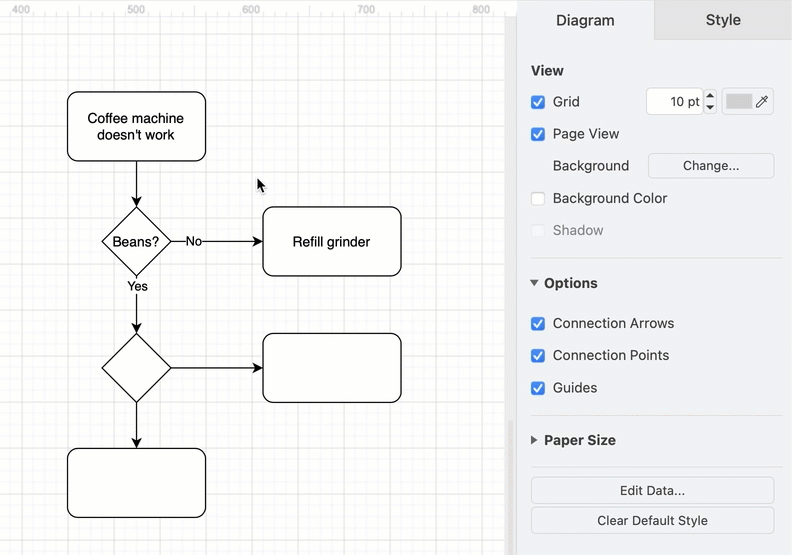

Select a shape or connector and start typing to add a label. Select a shape or connector with a label or a text shape and start typing to replace the existing text with whatever you type.
Select a shape or connector and start typing to replace the label text draw.io

When you highlight some or all the text within the label, rather than just selecting the shape or connector, additional text style options will be available in the Text tab of the format panel.

Tip: If you don't see the format panel, press Ctrl+Shift+P on Windows, or Cmd+Shift+P on macOS.

Change the font, size, colour & style of text​

Select the shapes, connectors and/or text shapes you want to format, then go to the Text tab of the format panel and change their style.

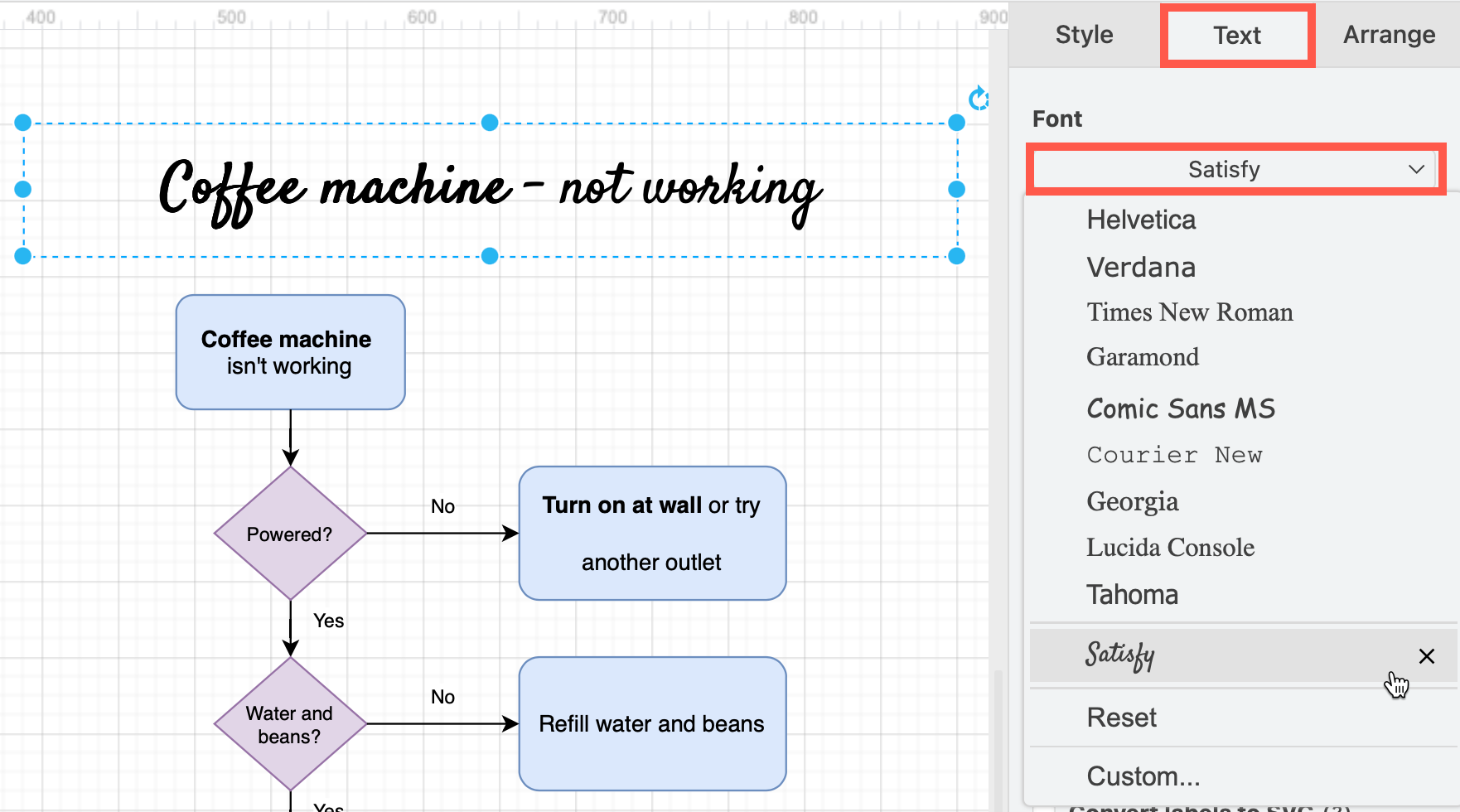

  • Font - Select a different font from the dropdown list, or use a Google or custom web font.
    Select a different font to style text in draw.io

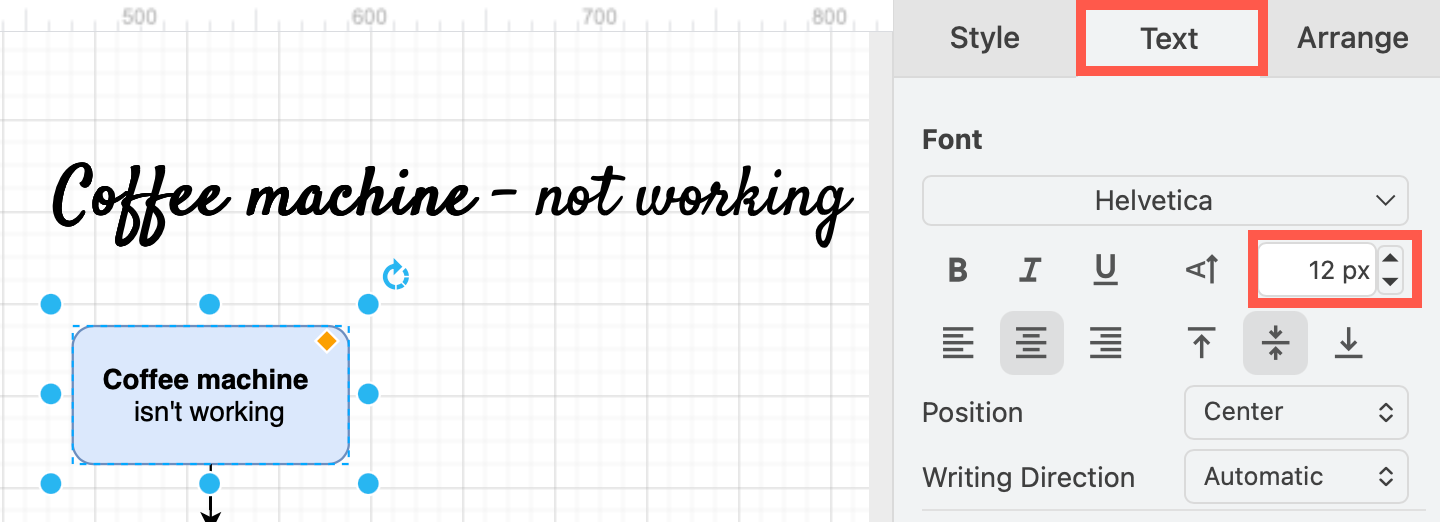

  • Size - Use the arrows to increase/decrease the font size. Alternatively, select the shape or label and press Ctrl+Shift +/- (Numpad) to increase or decrease the text size.
    Select a different font size to style text in draw.io

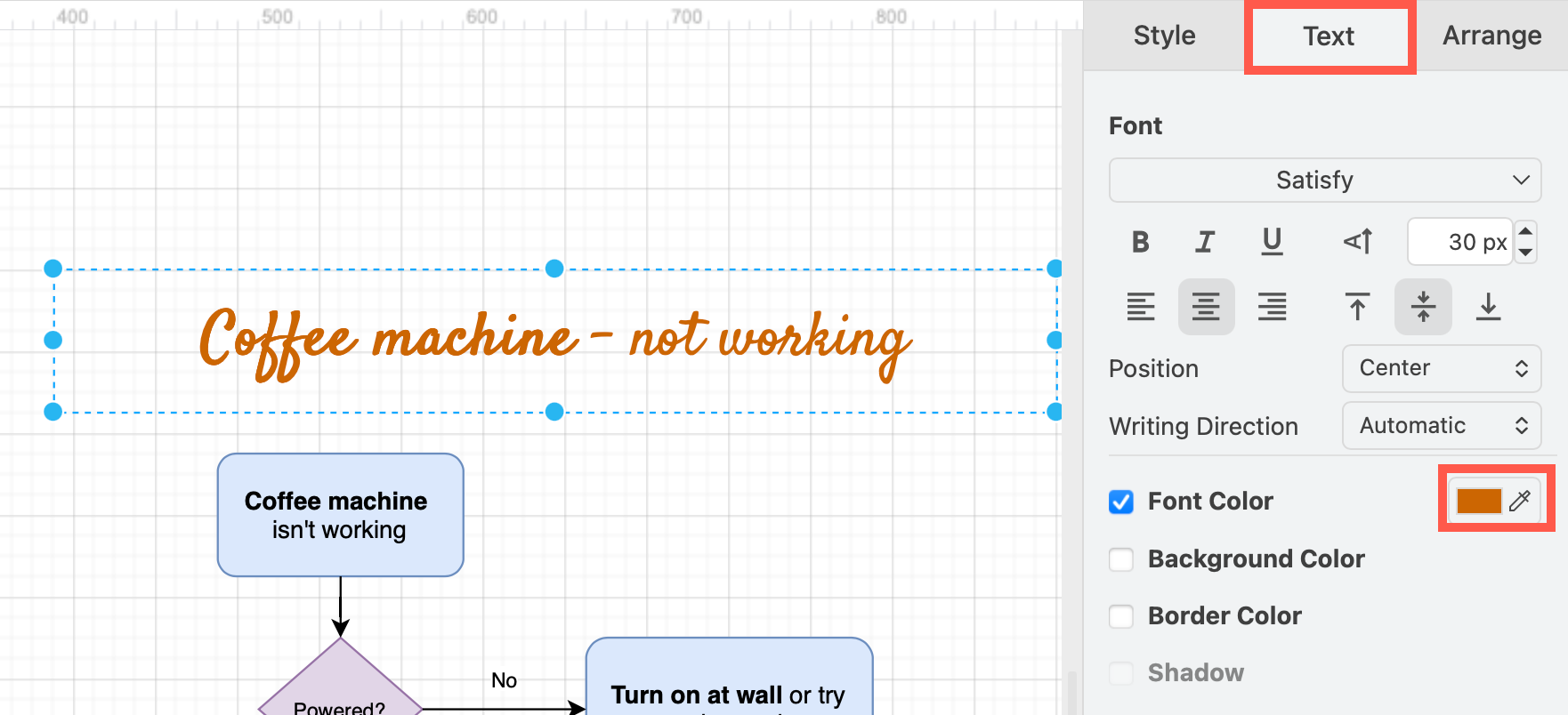

  • Font Color - Click on the colour button to open the palette and set a new font colour.
    Select a different font colour to style text in draw.io

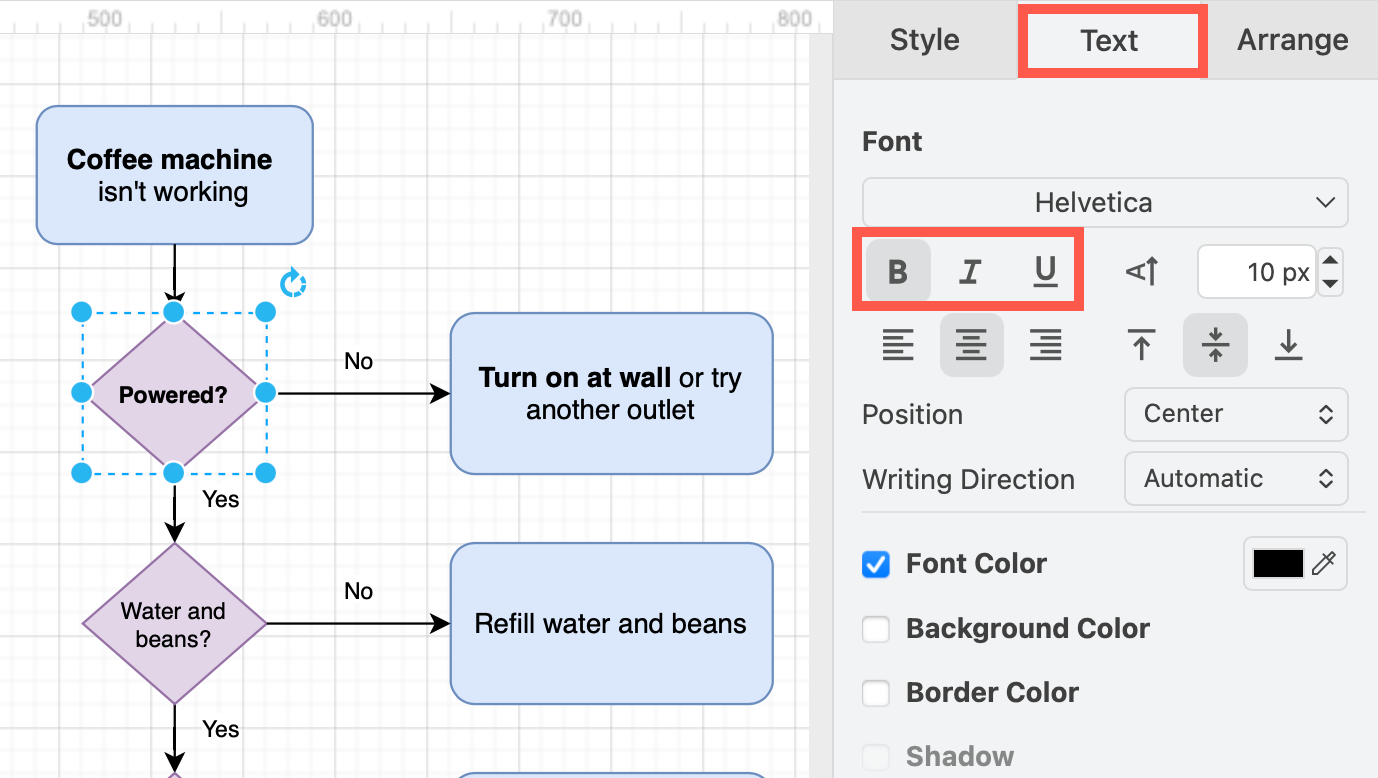

  • Bold, Italic and Underline - Click on one or more of these buttons to style the selected text.
    Select bold, italics or underline to style text in draw.io

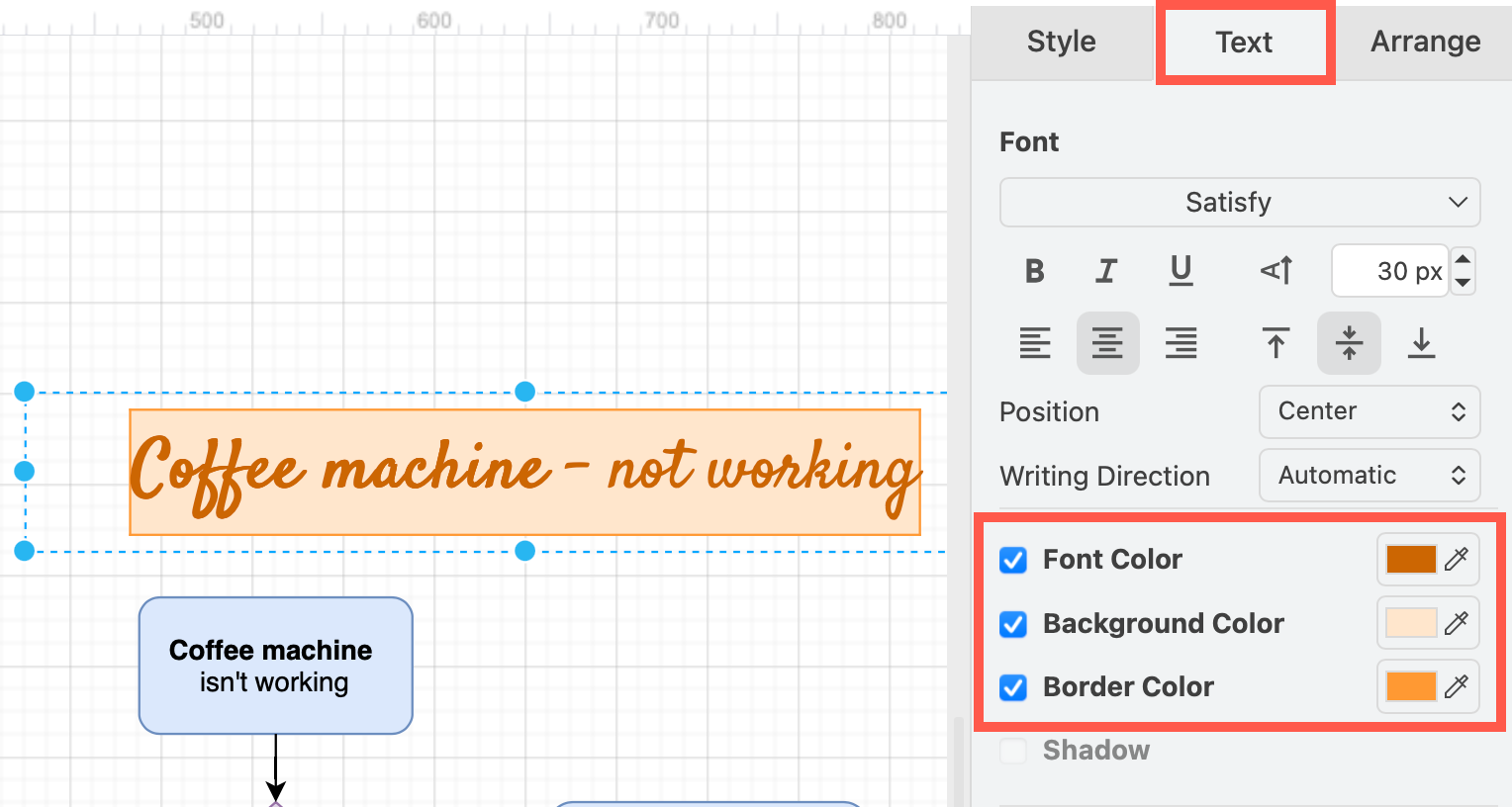

Add a background and border around the text by enabling the Background Color and Border Color checkboxes. This will override the Fill colour of the shape directly under the label text.
Click on the colour buttons to choose a new font, background and border colours from the palette

Refer to the text styles documentation to see how to edit the HTML tags and styles directly, change the line height, opacity, and more.

Change the position of a shape text label​

Horizontal alignment: Click on Right, Center or Left just as you would in a word processor app.

Vertical alignment: Click on Top, Middle or Bottom to move the label around inside the shape.

Change the text alignment of labels to left, right or centred Change where the text label sits vertically within a shape

You can also select a different Position from the dropdown list and change the Spacing values to reposition labels in and around their shapes. And you can change the writing direction to vertical or right-to-left text if you need to use Japanese, Chinese, Korean or Arabic.
