Editor themes & modes

The draw.io editor is available in four different variants (below), all of which work in dark and light modes. The editor theme controls which editor elements are displayed, minimised or hidden in the user interface, including the menu, toolbar, panels and dialog boxes.

Change the editor theme​

  1. Open the draw.io menu and select Settings > Theme.
  • In the Simple editor theme, click on the three dots in the toolbar.
  • In the Sketch editor theme, click on the three horizontal lines in the top left.
  • In the Minimal editor theme, click on Diagram in the top left.
  • In the Atlas and Classic editor themes, click on Extras > Theme
  1. Choose between Classic, Simple, Minimal, Sketch (a whiteboard-style theme), or Atlas.
  2. If prompted, reload the draw.io editor to start using your selected editor theme.

If you are new to diagramming, familiarise yourself with the Classic draw.io editor theme that looks at all the various important elements.

Classic editor theme​

The Classic editor theme (previously the Kennedy theme), named after the Google UI, is the default style for draw.io, and shows the menu, toolbar, file name, language selector, fixed panels either side and diagram pages below the drawing canvas.

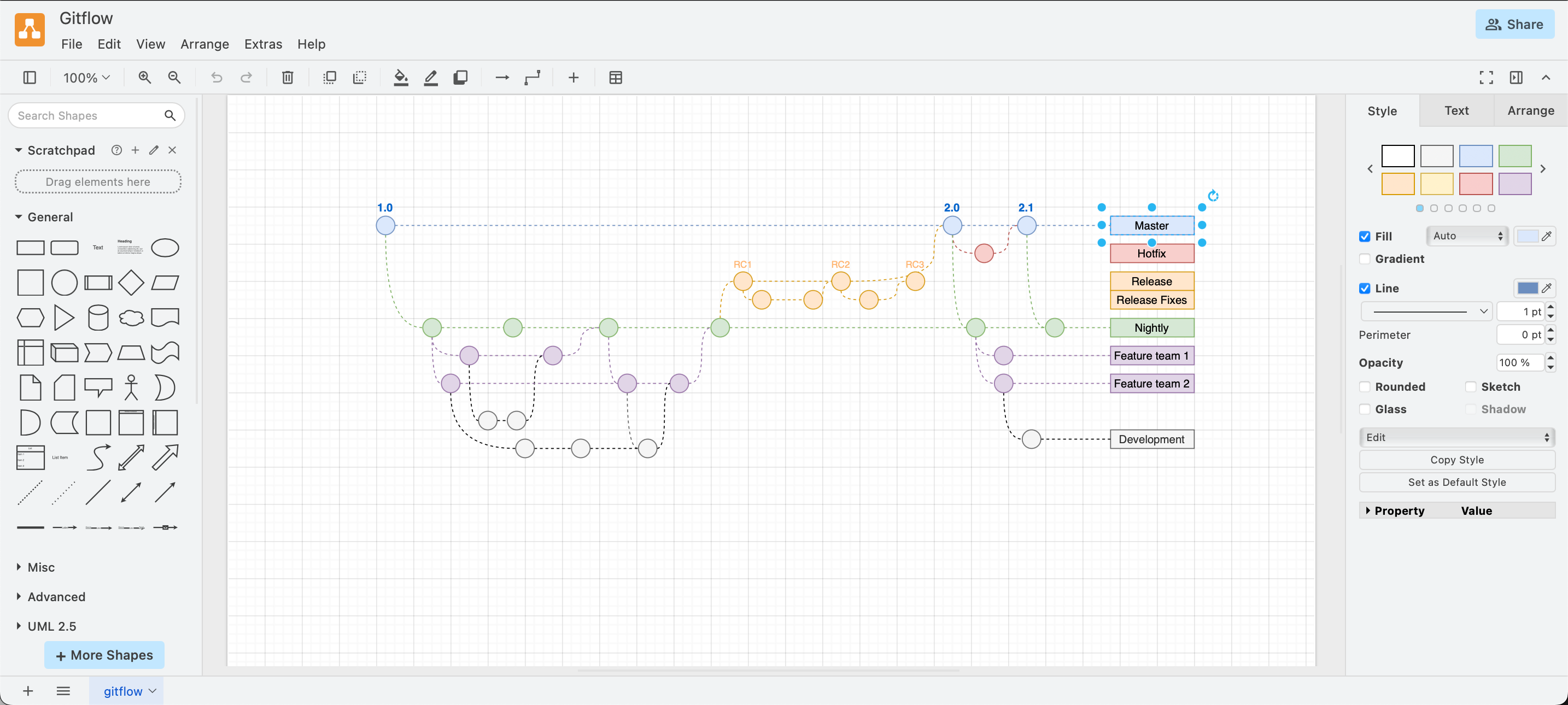

Choose your favourite UI theme in draw.io from Kennedy, Atlas, Dark, Minimal and Sketch
Start using the draw.io editor with the Classic theme

Atlas editor theme​

If you are used to using the draw.io apps on Atlassian Confluence or Jira, use the Atlas theme if you prefer to keep using that interface in the online draw.io editor or in draw.io Desktop.

The Atlas UI theme does not show the diagram's filename or the Share button, but the rest of the editor elements are displayed in roughly the same positions.

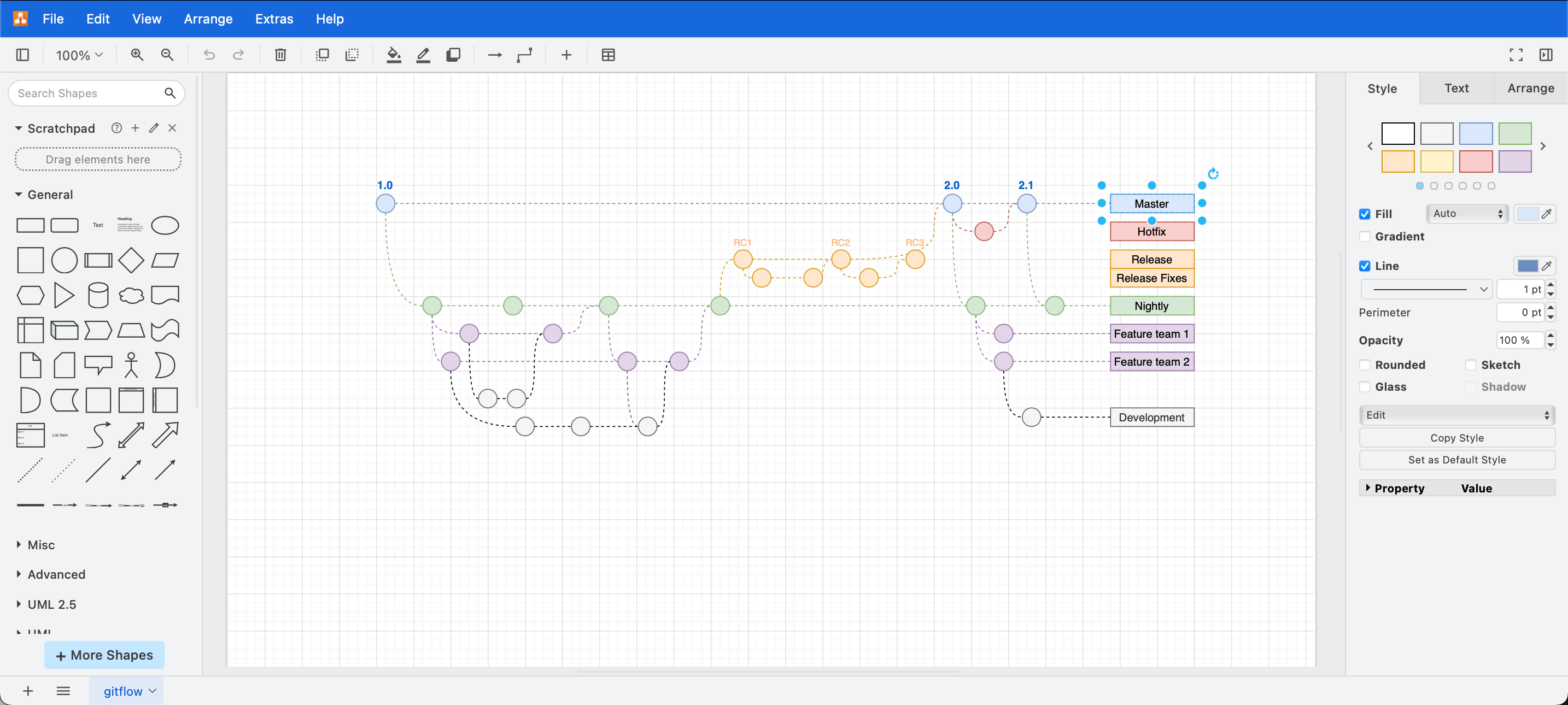

Choose your favourite UI theme in draw.io from Kennedy, Atlas, Dark, Minimal and Sketch
Start using the draw.io editor with the Atlas theme

Simple editor theme​

The Simple editor theme combines the fixed panels and page tabs from the original editor layout, the responsive toolbar from Minimal, and the menu and shape picker from Sketch.

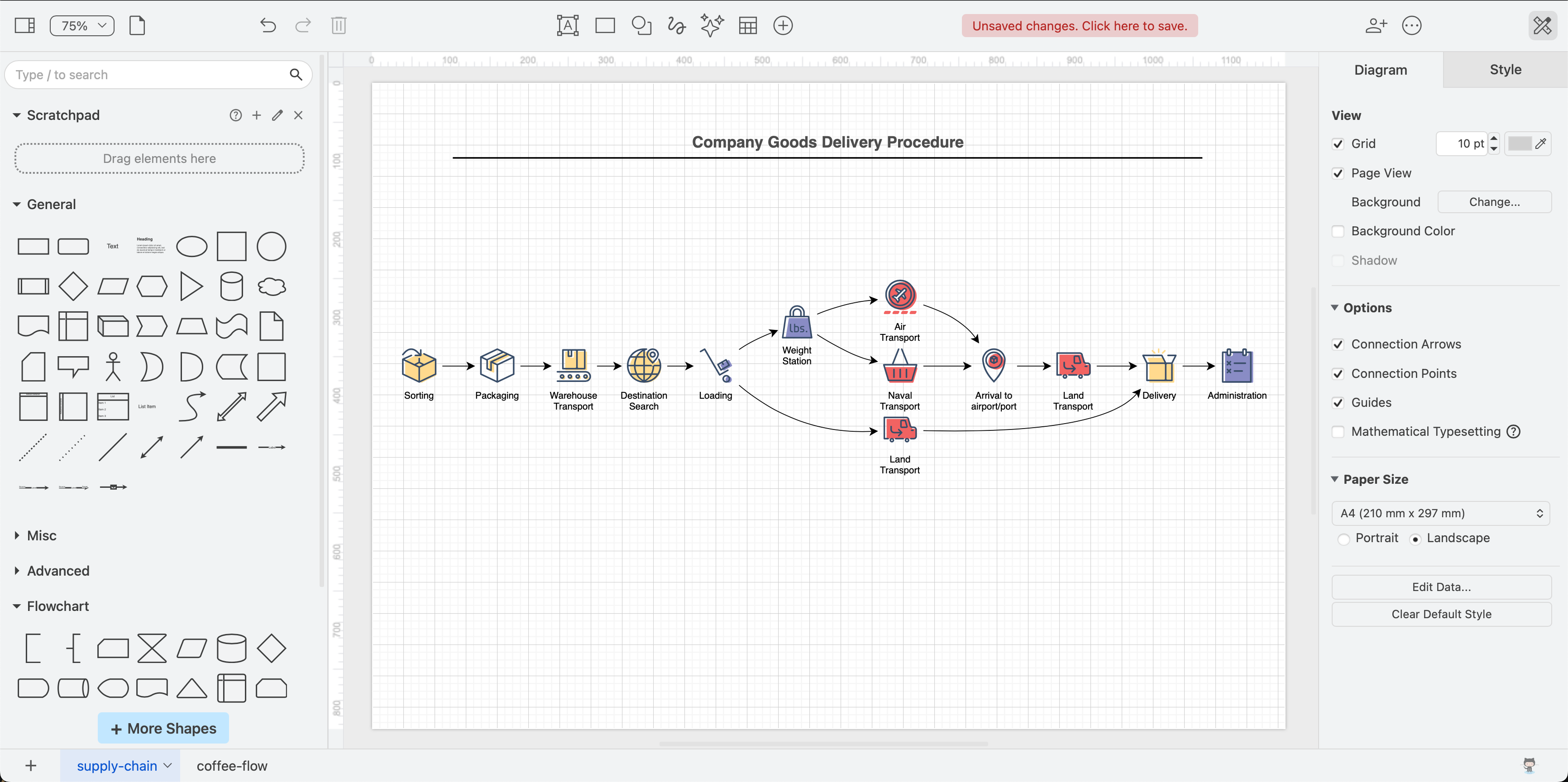

The draw.io simple mode has a simpler toolbar which integrates the menu

Minimal editor theme​

If you are diagramming on a tablet or a mobile device, the Minimal theme allows you to collapse the panels around the drawing canvas for less 'clutter'. The Minimal theme, or the Sketch (whiteboard) editor theme below are ideal for remote kanban boards

  • The menu is minimised to the Diagram tool on the toolbar, panels can be toggled on and off as you need, or minimised to their titles to make room for more drawing.
  • The panels are floating in the Minimal theme, you can drag them to a new position over the drawing canvas.
  • Select Diagram > Preferences > Theme when using the Minimal editor theme to change to another one, then refresh the page.

If you are new to diagramming and feel overwhelmed with the number of tools displayed in a diagram editor, you may find the Minimal theme easier to use.

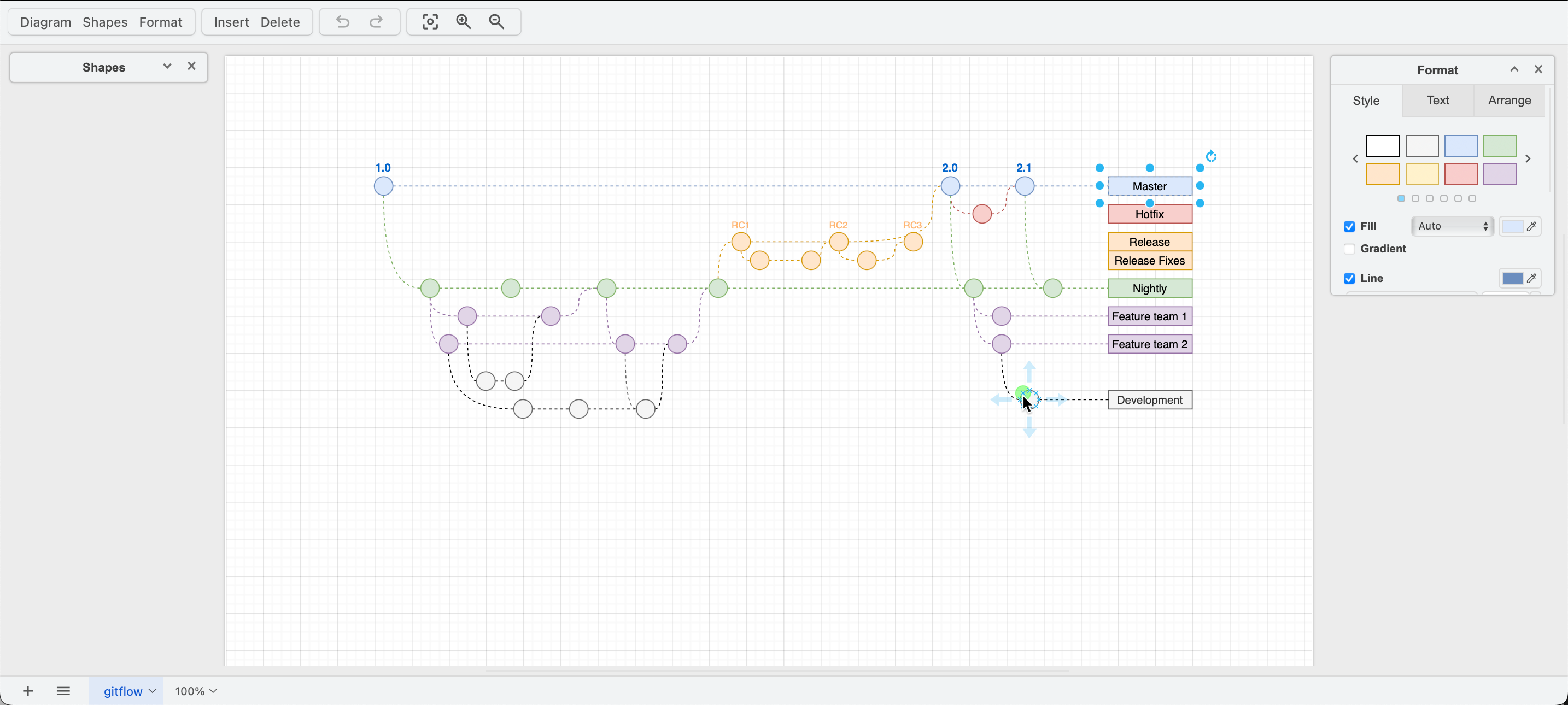

Choose your favourite UI theme in draw.io from Kennedy, Atlas, Dark, Minimal and Sketch
Start using the draw.io editor with the Minimal theme

Sketch editor theme​

If you prefer minimal tools and the rough style enabled by default, like you would in a whiteboarding app, the Sketch editor theme is for you. This easy-to-use theme is set by default in the draw.io Board macro for Confluence, and in the draw.io for Notion Chrome extension.

The Sketch editor theme may also be useful to introduce younger children to diagramming or support them as they add diagrams to their documents and in Google Classroom with the Google Drive add-in.

Enable the Sketch editor theme in draw.io as you would any other theme and refresh the page. Alternatively, go to sketch.diagrams.net
Sketch theme is currently being developed
Open this tutorial in the new Sketch theme at diagrams.net
Tip: Resize your browser to line everything up with the tutorial diagram.

Editor theme + Dark mode​

If you prefer to work on a dark background with light outlines and text, or if you are creating an infographic that will be printed on a dark background, switch to dark mode in whatever editor theme you are currently using. Colours will automatically adapt to remain readable.

Select Extras > Appearance > Dark if you are using the Classic or Atlas editor themes.

In all other themes, open the draw.io menu and select Settings > Appearance > Dark.

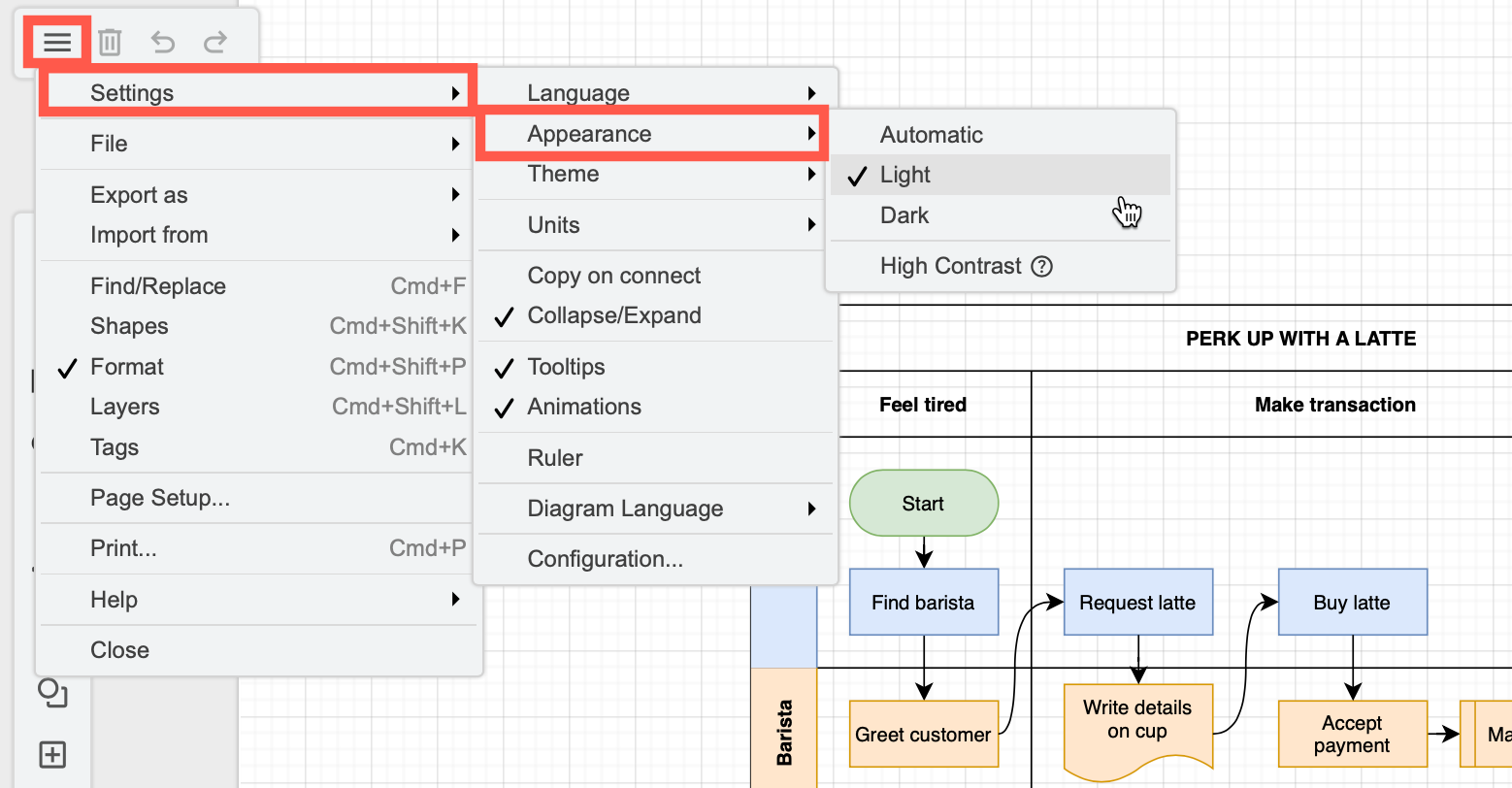

Switch between dark and light modes via the draw.io menu under Settings /> Appearance

Start using the draw.io editor in Dark mode

Automatic matches your browser or operating system's dark mode settings.

Exporting diagrams from dark mode​

Set the background of your diagram to transparent before you export it to a PDF or image format, or choose to export it with a dark background (as if it were in dark mode).
